SKU: NP3/4DEC-RHP

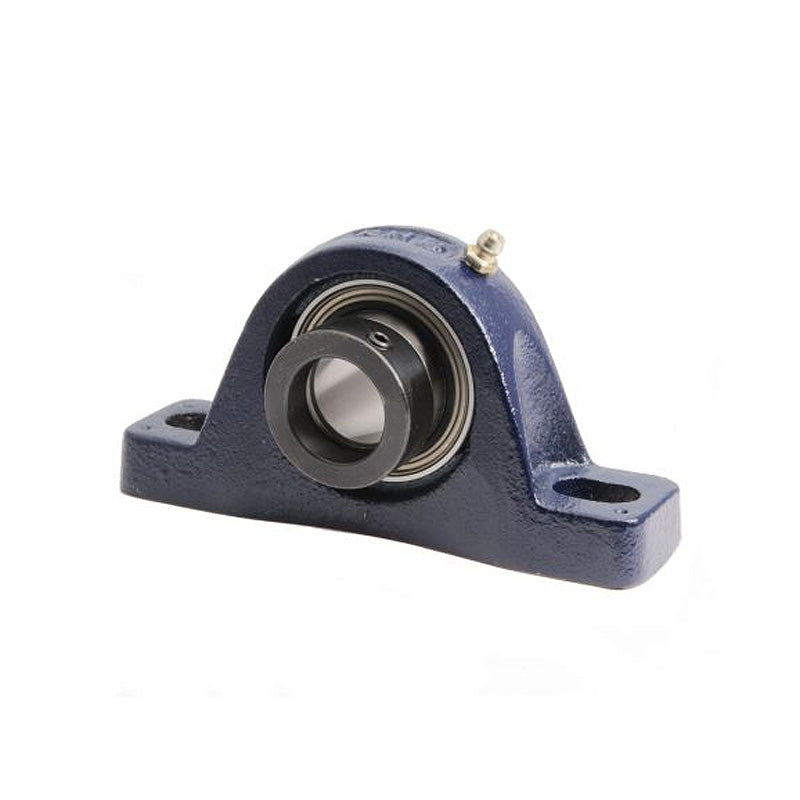

RHP NP3/4DEC Two Bolt Cast Iron Pillow Block and 3/4 Bore Eccentric Collar Full Width Insert
RHP NP3/4DEC Two Bolt Cast Iron Pillow Block and 3/4 Bore Eccentric Collar Full Width Insert
Regular price
Rs. 5,285.90
ex VAT
Regular price
Sale price
Rs. 5,285.90
ex VAT
In stock
Price Break
10+
Rs. 4,704.45
19+
Rs. 4,440.16
29+
Rs. 4,387.30
39+
Rs. 4,334.44
49+
Rs. 4,281.58
74+
Rs. 4,228.72
99+
Rs. 3,964.43
199+
Rs. 3,911.57
249+
Rs. 3,858.71
499+
Rs. 3,805.85
999+
Rs. 3,700.13
Couldn't load pickup availability
Description
Description
|
RHP NP-DEC Series Plummer / Pillow Housings: Supplied with a full width sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft once fitted. The insert can be removed from the housings for future replacement as required. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- NP
- Bolt Hole Centres:
- 3.484-3.957 inch
Technical
Technical
| Bore | 3/4 inch |
|---|---|
| L | 5 inch |
| H | 1.311 inch |
| H1 | 0.551 inch |
| H2 | 2.567 inch |
| J max | 3.957 inch |
| J min | 3.484 inch |
| G | 0.375 inch |
| A | 1.28 inch |
| A1 | 0.886 inch |
| B3 | 1.717 inch |
| s2 | 0.674 inch |
| d2 | 1.311 inch |
| Dynamic load Cr | 12800 N |
| Static load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1020-3/4DECG+insonly">1020-3/4DECG Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
