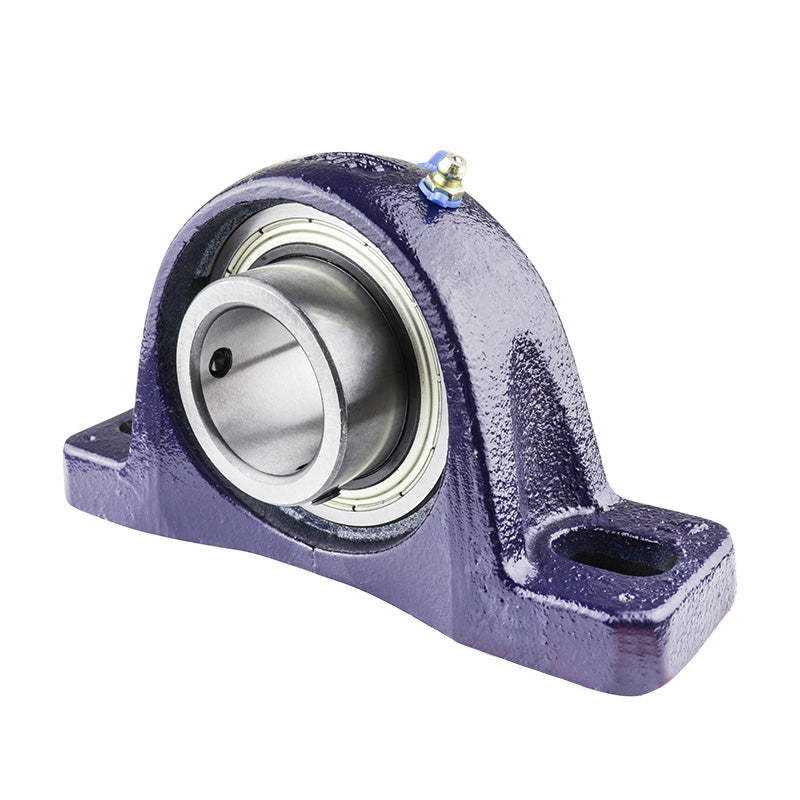

• RHP NP2-3/8 Two Bolt Cast Iron Pillow Block and 2-3/8 Bore Grub Screw Full Width Insert
1 1

SKU: NP2.3/8-RHP

RHP NP2-3/8 Two Bolt Cast Iron Pillow Block and 2-3/8 Bore Grub Screw Full Width Insert

RHP NP2-3/8 Two Bolt Cast Iron Pillow Block and 2-3/8 Bore Grub Screw Full Width Insert
Rs. 17,091.79
Rs. 17,091.79
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 15,211.69
19+ Rs. 14,357.10
29+ Rs. 14,186.19
39+ Rs. 14,015.27
49+ Rs. 13,844.35
74+ Rs. 13,673.43
99+ Rs. 12,818.84
199+ Rs. 12,647.92
249+ Rs. 12,477.01
499+ Rs. 12,306.09
999+ Rs. 11,964.25
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP NP Series Plummer / Pillow Housings: Supplied with a full width sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full with insert, grub screw fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
60.33mm = 2.375 (2-3/8) inch
Style:
NP
Bolt Hole Centres:
6.937-7.563 inch
Technical
Bore 2-3/8 inch
L 9.5 inch
H 2.752 inch
H1 0.874 inch
H2 5.563 inch
J max 7.563 inch
J min 6.937 inch
G 0.625 inch
A 2.748 inch
A1 1.811 inch
B 2.562 inch
s 1.002 inch
d1 2.966 inch
Dynamic load Cr 48000 N
Static load Cor 33000 N
Rec max speed 2800 rpm
Weight 5.9 kg
Insert <a href="advanced_search_result.php?keywords=1060-2-3/8G+insonly">1060-2-3/8G Click Here</a>
Casting group 10
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
