SKU: NP2.11/16-RHP

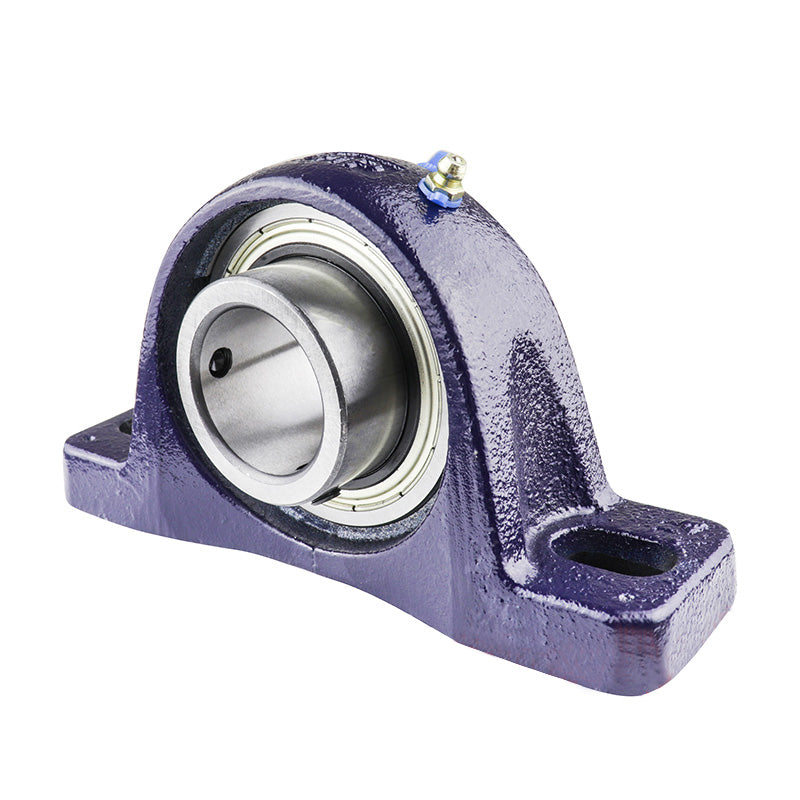

RHP NP2-11/16 Two Bolt Cast Iron Pillow Block and 2-11/16 Bore Grub Screw Full Width Insert
RHP NP2-11/16 Two Bolt Cast Iron Pillow Block and 2-11/16 Bore Grub Screw Full Width Insert
Regular price
Rs. 28,436.70
ex VAT
Regular price
Sale price
Rs. 28,436.70
ex VAT
In stock
Price Break
10+
Rs. 25,308.66
19+
Rs. 23,886.83
29+
Rs. 23,602.46
39+
Rs. 23,318.09
49+
Rs. 23,033.73
74+
Rs. 22,749.36
99+
Rs. 21,327.53
199+
Rs. 21,043.16
249+
Rs. 20,758.79
499+
Rs. 20,474.42
999+
Rs. 19,905.69
Couldn't load pickup availability
Description
Description
|
RHP NP Series Plummer / Pillow Housings: Supplied with a full width sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 68.26mm = 2.687 (2-11/16) inch
- Style:
- NP
- Bolt Hole Centres:
- 7.874-8.661 inch
Technical
Technical
| Bore | 2-11/16 inch |
|---|---|
| L | 10.472 inch |
| H | 3.126 inch |
| H1 | 1.102 inch |
| H2 | 6.142 inch |
| J max | 8.661 inch |
| J min | 7.874 inch |
| G | 0.875 inch |
| A | 2.835 inch |
| A1 | 1.85 inch |
| B | 2.938 inch |
| s | 1.19 inch |
| d1 | 3.425 inch |
| Dynamic load Cr | 61000 N |
| Static load Cor | 45000 N |
| Rec max speed | 2450 rpm |
| Weight | 8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1070-2-11/16G+insonly">1070-2-11/16G Click Here</a> |
| Casting group | 11 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
