SKU: NP2.1/8-RHP

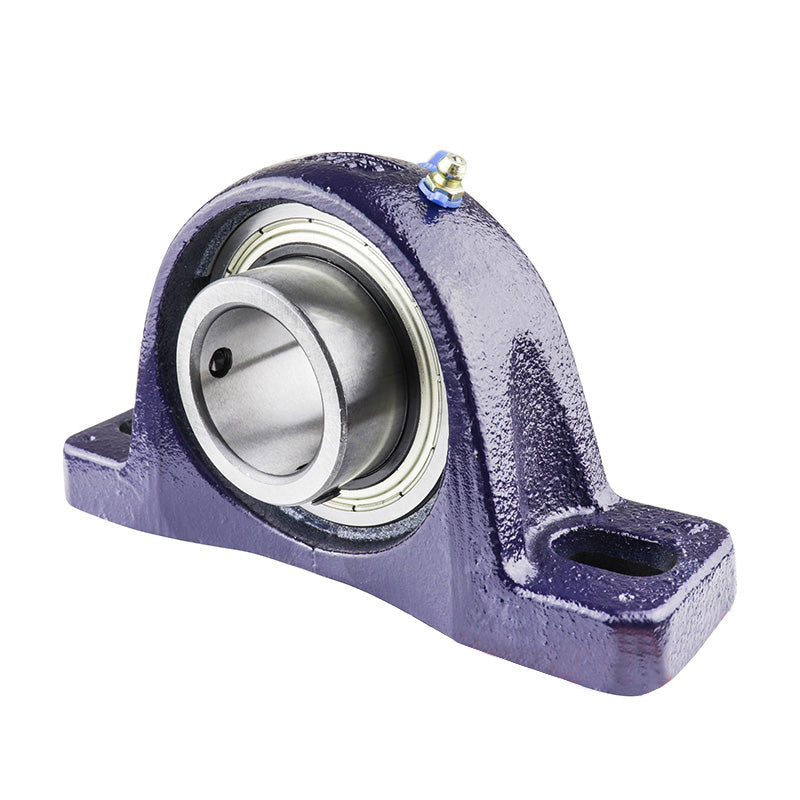

RHP NP2-1/8 Two Bolt Cast Iron Pillow Block and 2-1/8 Bore Grub Screw Full Width Insert
RHP NP2-1/8 Two Bolt Cast Iron Pillow Block and 2-1/8 Bore Grub Screw Full Width Insert
Regular price
Rs. 20,768.73
ex VAT
Regular price
Sale price
Rs. 20,768.73
ex VAT
In stock
Price Break
10+
Rs. 18,484.17
19+
Rs. 17,445.73
29+
Rs. 17,238.05
39+
Rs. 17,030.36
49+
Rs. 16,822.67
74+
Rs. 16,614.98
99+
Rs. 15,576.55
199+
Rs. 15,368.86
249+
Rs. 15,161.17
499+
Rs. 14,953.49
999+
Rs. 14,538.11
Couldn't load pickup availability
Description
Description
|
RHP NP Series Plummer / Pillow Housings: Supplied with a full width sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 53.98mm = 2.125 (2-1/8) inch
- Style:
- NP
- Bolt Hole Centres:
- 6.398-7.028 inch
Technical
Technical
| Bore | 2-1/8 inch |
|---|---|
| L | 8.641 inch |
| H | 2.5 inch |
| H1 | 0.976 inch |
| H2 | 5.098 inch |
| J max | 7.028 inch |
| J min | 6.398 inch |
| G | 0.625 inch |
| A | 2.362 inch |
| A1 | 1.555 inch |
| B | 2.187 inch |
| s | 0.877 inch |
| d1 | 2.709 inch |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-2-1/8G+insonly">1055-2-1/8G Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
