SKU: NP2.1/4DEC-RHP

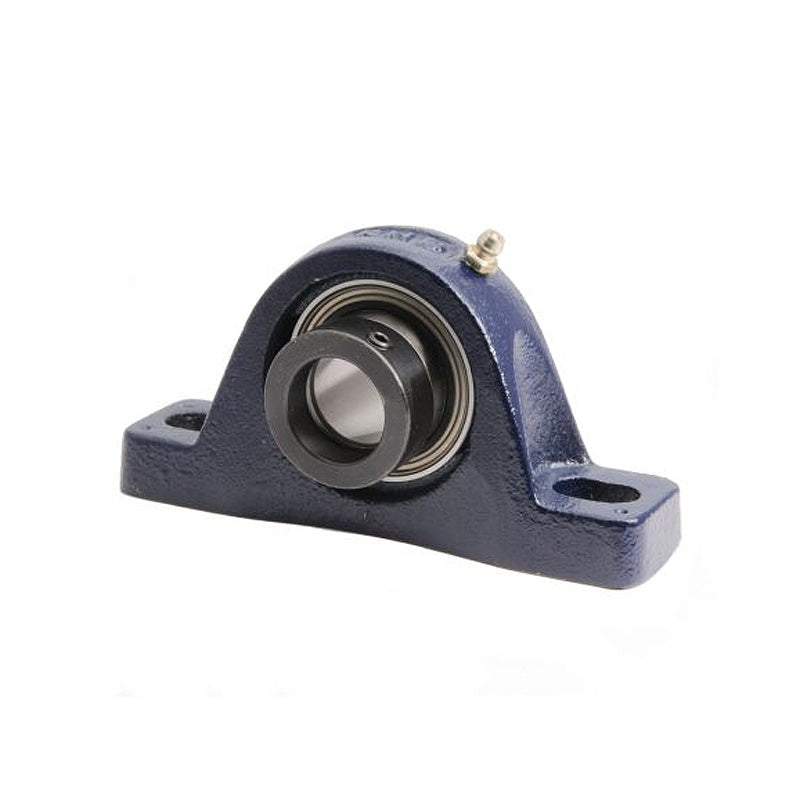

RHP NP2-1/4DEC Two Bolt Cast Iron Pillow Block and 2-1/4 Bore Eccentric Collar Full Width Insert
RHP NP2-1/4DEC Two Bolt Cast Iron Pillow Block and 2-1/4 Bore Eccentric Collar Full Width Insert
Regular price
Rs. 21,639.01
Regular price
Sale price
Rs. 21,639.01
Taxes included.
In stock
Price Break
10+
Rs. 19,258.72
19+
Rs. 18,176.77
29+
Rs. 17,960.38
39+
Rs. 17,743.99
49+
Rs. 17,527.60
74+
Rs. 17,311.21
99+
Rs. 16,229.26
199+
Rs. 16,012.87
249+
Rs. 15,796.48
499+
Rs. 15,580.09
999+
Rs. 15,147.31
Description
Description
|
RHP NP-DEC Series Plummer / Pillow Housings: Supplied with a full width sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft once fitted. The insert can be removed from the housings for future replacement as required. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Style:
- NP
- Bolt Hole Centres:
- 6.937-7.563 inch
Technical
Technical
| Bore | 2-1/4 inch |
|---|---|
| L | 9.5 inch |
| H | 2.752 inch |
| H1 | 0.874 inch |
| H2 | 5.563 inch |
| J max | 7.563 inch |
| J min | 6.937 inch |
| G | 0.625 inch |
| A | 2.748 inch |
| A1 | 1.811 inch |
| B3 | 3.064 inch |
| s2 | 1.221 inch |
| d2 | 3.312 inch |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 5.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-2-1/4DECG+insonly">1060-2-1/4DECG Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
