SKU: NP1DEC-RHP

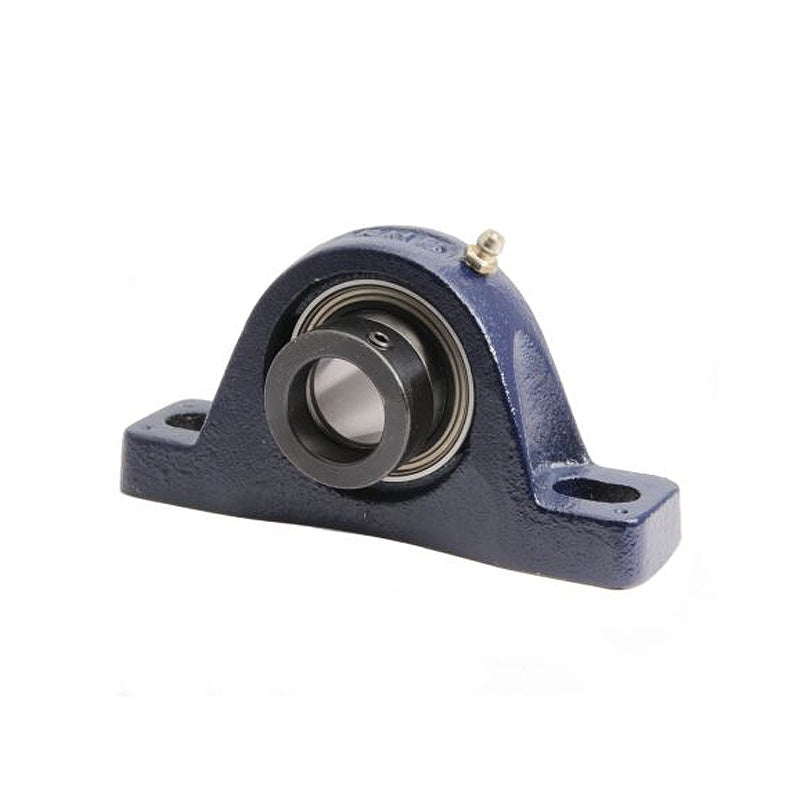

RHP NP1DEC Two Bolt Cast Iron Pillow Block and 1 Bore Eccentric Collar Full Width Insert
RHP NP1DEC Two Bolt Cast Iron Pillow Block and 1 Bore Eccentric Collar Full Width Insert
Regular price
Rs. 5,984.94
ex VAT
Regular price
Sale price
Rs. 5,984.94
ex VAT
In stock
Price Break
10+
Rs. 5,326.60
19+
Rs. 5,027.35
29+
Rs. 4,967.50
39+
Rs. 4,907.65
49+
Rs. 4,847.80
74+
Rs. 4,787.95
99+
Rs. 4,488.71
199+
Rs. 4,428.86
249+
Rs. 4,369.01
499+
Rs. 4,309.16
999+
Rs. 4,189.46
Couldn't load pickup availability
Description
Description
|
RHP NP-DEC Series Plummer / Pillow Housings: Supplied with a full width sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft once fitted. The insert can be removed from the housings for future replacement as required. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- NP
- Bolt Hole Centres:
- 3.811-4.437 inch
Technical
Technical
| Bore | 1 inch |
|---|---|
| L | 5.472 inch |
| H | 1.437 inch |
| H1 | 0.63 inch |
| H2 | 2.795 inch |
| J max | 4.437 inch |
| J min | 3.811 inch |
| G | 0.375 inch |
| A | 1.437 inch |
| A1 | 0.965 inch |
| B3 | 1.748 inch |
| s2 | 0.689 inch |
| d2 | 1.5 inch |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-1DECG+insonly">1025-1DECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
