SKU: NP15/16-RHP

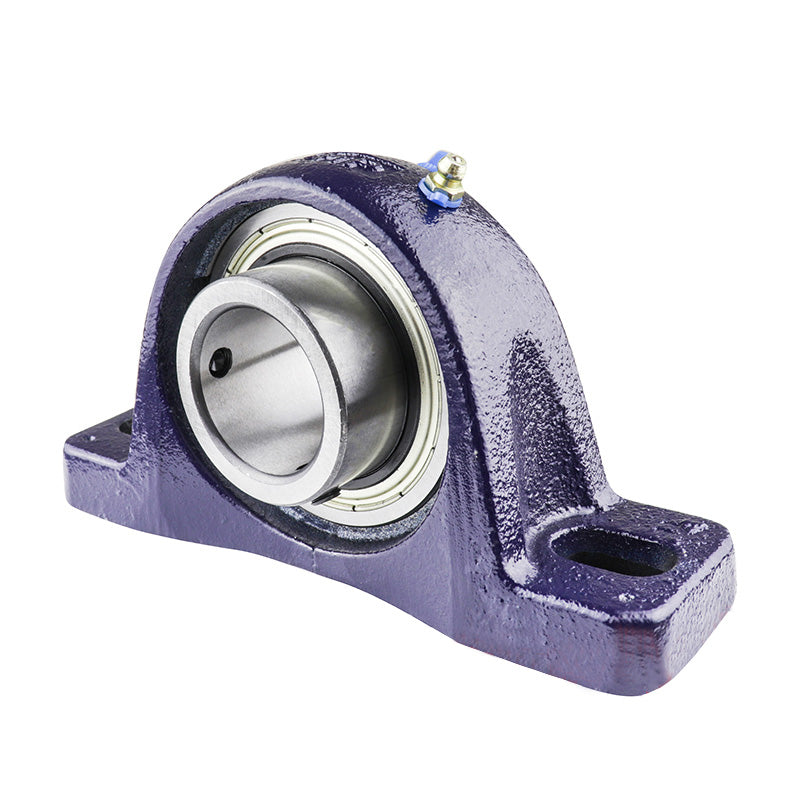

RHP NP15/16 Two Bolt Cast Iron Pillow Block and 15/16 Bore Grub Screw Full Width Insert
RHP NP15/16 Two Bolt Cast Iron Pillow Block and 15/16 Bore Grub Screw Full Width Insert
Regular price
Rs. 5,266.69
Regular price
Sale price
Rs. 5,266.69
Taxes included.
In stock
Price Break
10+
Rs. 4,687.35
19+
Rs. 4,424.02
29+
Rs. 4,371.35
39+
Rs. 4,318.69
49+
Rs. 4,266.02
74+
Rs. 4,213.35
99+
Rs. 3,950.02
199+
Rs. 3,897.35
249+
Rs. 3,844.68
499+
Rs. 3,792.02
999+
Rs. 3,686.68
Description
Description
|
RHP NP Series Plummer / Pillow Housings: Supplied with a full width sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Style:
- NP
- Bolt Hole Centres:
- 3.811-4.437 inch
Technical
Technical
| Bore | 15/16 inch |
|---|---|
| L | 5.472 inch |
| H | 1.437 inch |
| H1 | 0.63 inch |
| H2 | 2.795 inch |
| J max | 4.437 inch |
| J min | 3.811 inch |
| G | 0.375 inch |
| A | 1.437 inch |
| A1 | 0.965 inch |
| B | 1.343 inch |
| s | 0.564 inch |
| d1 | 1.339 inch |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-15/16G+insonly">1025-15/16G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
