SKU: NP1055-50K-RHP

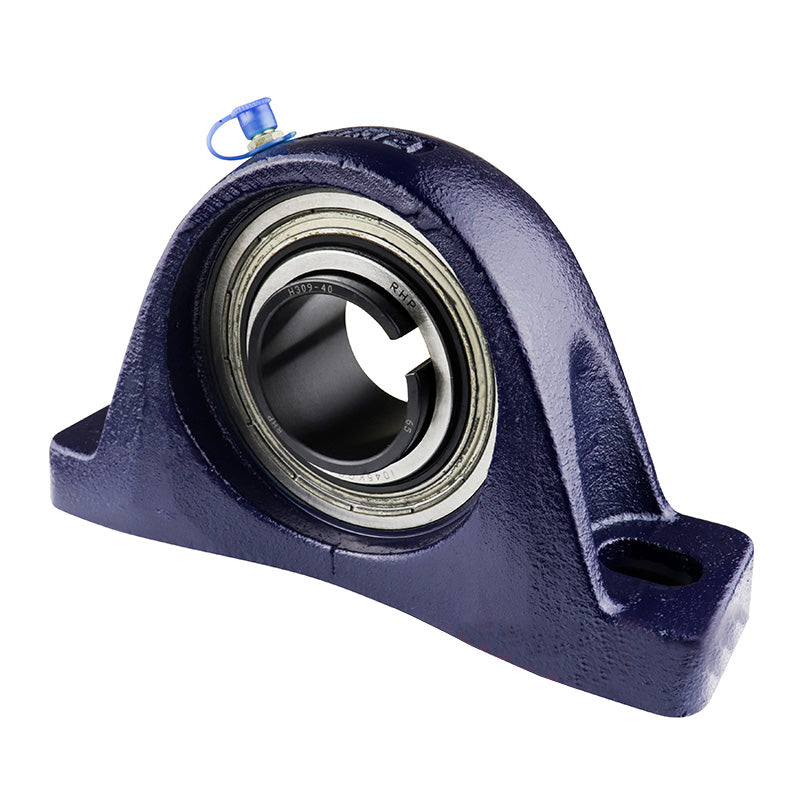

RHP NP1055-50K Two Bolt Cast Iron Pillow Block and 50mm Bore Taper Insert with Sleeve and Lock Nut
In stock
Price Break
Couldn't load pickup availability
Description
|
RHP NP K-XX Series Plummer / Pillow Housings: Supplied with a sealed full width taper sleeve bearing insert fitted in the housing complete with taper sleeve, lock nut and tab washer and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate the taper sleeve which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Style:
- NP
- Bolt Hole Centres:
- 162.5-178.5mm
Technical
| Bore | 50mm |
|---|---|
| L | 219.5mm |
| H | 63.5mm |
| H1 | 24.8mm |
| H2 | 129.5mm |
| J max | 178.5mm |
| J min | 162.5mm |
| G | 16mm |
| A | 60mm |
| A1 | 39.5mm |
| B5 | 45mm |
| d4 | 75mm |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055K+insonly">1055K Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
