SKU: NP1050K-RHP

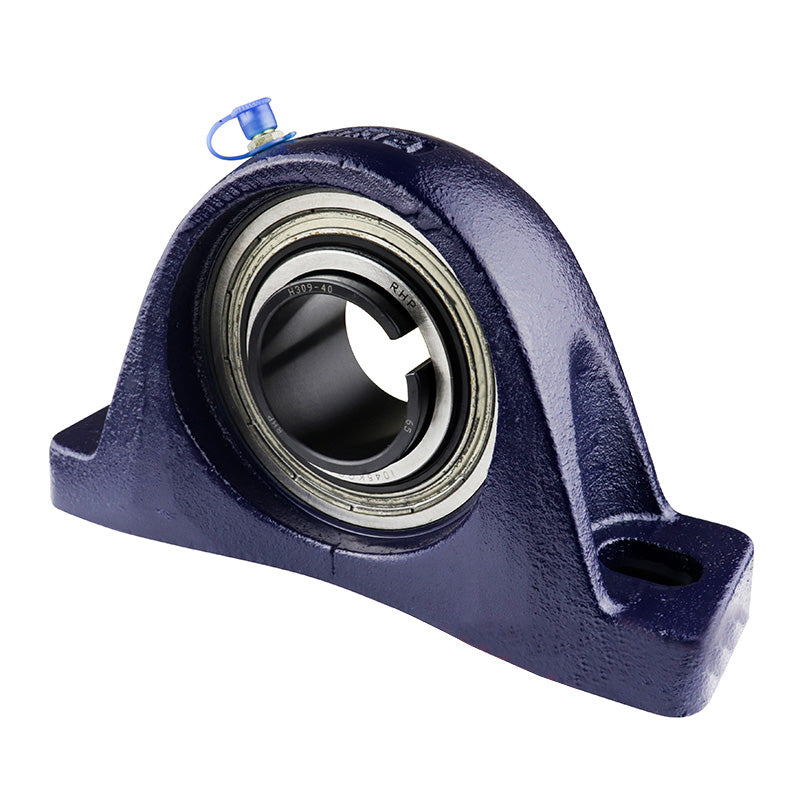

RHP NP1050K Two Bolt Cast Iron Pillow Block and 1-3/4 Bore and Taper Bore Insert (No Sleeve)
RHP NP1050K Two Bolt Cast Iron Pillow Block and 1-3/4 Bore and Taper Bore Insert (No Sleeve)
Regular price
Rs. 11,174.59
ex VAT
Regular price
Sale price
Rs. 11,174.59
ex VAT
In stock
Price Break
10+
Rs. 9,945.39
19+
Rs. 9,386.66
29+
Rs. 9,274.91
39+
Rs. 9,163.16
49+
Rs. 9,051.42
74+
Rs. 8,939.67
99+
Rs. 8,380.94
199+
Rs. 8,269.20
249+
Rs. 8,157.45
499+
Rs. 8,045.70
999+
Rs. 7,822.21
Couldn't load pickup availability
Description
Description
|
RHP NP K Series Plummer / Pillow Housings: Supplied with a sealed full width taper bore bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate fitting with a taper sleeve (not supplied) which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- NP
- Bolt Hole Centres:
- 6.063-6.417 inch
Technical
Technical
| L | 8.11 inch |
|---|---|
| H | 2.252 inch |
| H1 | 0.827 inch |
| H2 | 4.535 inch |
| J max | 6.417 inch |
| J min | 6.063 inch |
| G | 0.625 inch |
| A | 2.165 inch |
| A1 | 1.417 |
| B5 | 1.654 |
| d4 | 2.756 inch |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 3.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050K+insonly">1050K Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
