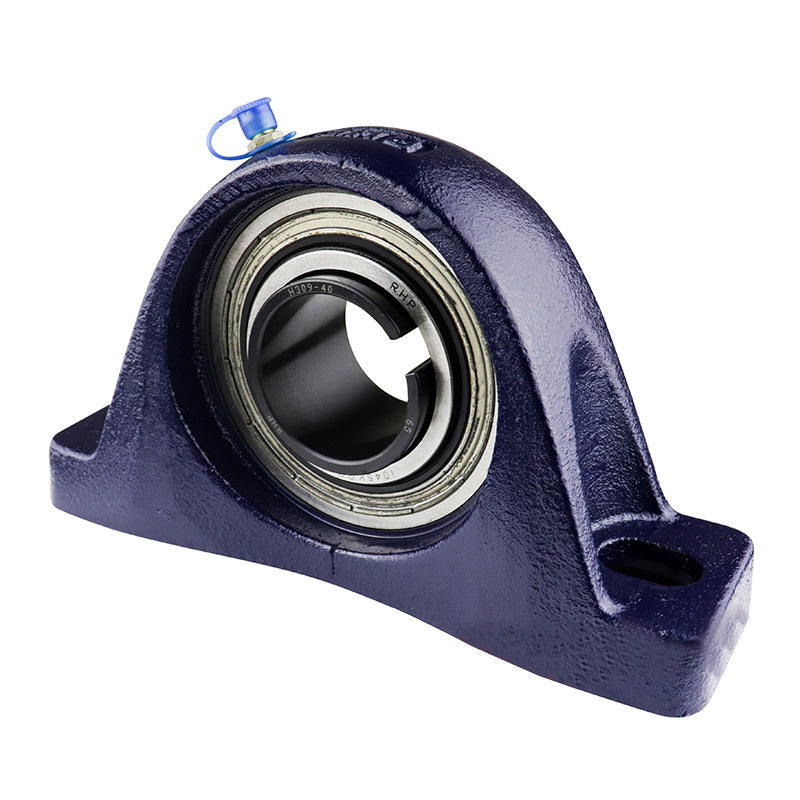

• RHP NP1045K Two Bolt Cast Iron Pillow Block and 1-1/2 Bore and Taper Bore Insert (No Sleeve)
1 1

SKU: NP1045K-RHP

RHP NP1045K Two Bolt Cast Iron Pillow Block and 1-1/2 Bore and Taper Bore Insert (No Sleeve)

RHP NP1045K Two Bolt Cast Iron Pillow Block and 1-1/2 Bore and Taper Bore Insert (No Sleeve)
Rs. 9,569.40
Rs. 9,569.40
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 8,516.77
19+ Rs. 8,038.30
29+ Rs. 7,942.60
39+ Rs. 7,846.91
49+ Rs. 7,751.21
74+ Rs. 7,655.52
99+ Rs. 7,177.05
199+ Rs. 7,081.36
249+ Rs. 6,985.66
499+ Rs. 6,889.97
999+ Rs. 6,698.58
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP NP K Series Plummer / Pillow Housings: Supplied with a sealed full width taper bore bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate fitting with a taper sleeve (not supplied) which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer.
The insert can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, taper sleeve fixing, insert extends to front and back
Brand / Quality:
RHP - High Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Style:
NP
Bolt Hole Centres:
5.531-6.083 inch
Technical
L 7.5 inch
H 2.126 inch
H1 0.787 inch
H2 4.252 inch
J max 6.083 inch
J min 5.531 inch
G 0.5 inch
A 2.126 inch
A1 1.378
B5 1.535
d4 2.559 inch
Dynamic load Cr 32500 N
Static load Cor 20500 N
Rec max speed 3700 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1045K+insonly">1045K Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
