SKU: NP1040K-RHP
RHP NP1040K Two Bolt Cast Iron Pillow Block and 1-3/8 Bore and Taper Bore Insert (No Sleeve)
RHP NP1040K Two Bolt Cast Iron Pillow Block and 1-3/8 Bore and Taper Bore Insert (No Sleeve)
Regular price
Rs. 8,548.11
ex VAT
Regular price
Sale price
Rs. 8,548.11
ex VAT
In stock
Price Break
10+
Rs. 7,607.82
19+
Rs. 7,180.41
29+
Rs. 7,094.93
39+
Rs. 7,009.45
49+
Rs. 6,923.97
74+
Rs. 6,838.49
99+
Rs. 6,411.08
199+
Rs. 6,325.60
249+
Rs. 6,240.12
499+
Rs. 6,154.64
999+
Rs. 5,983.68
Couldn't load pickup availability
Description
Description
|

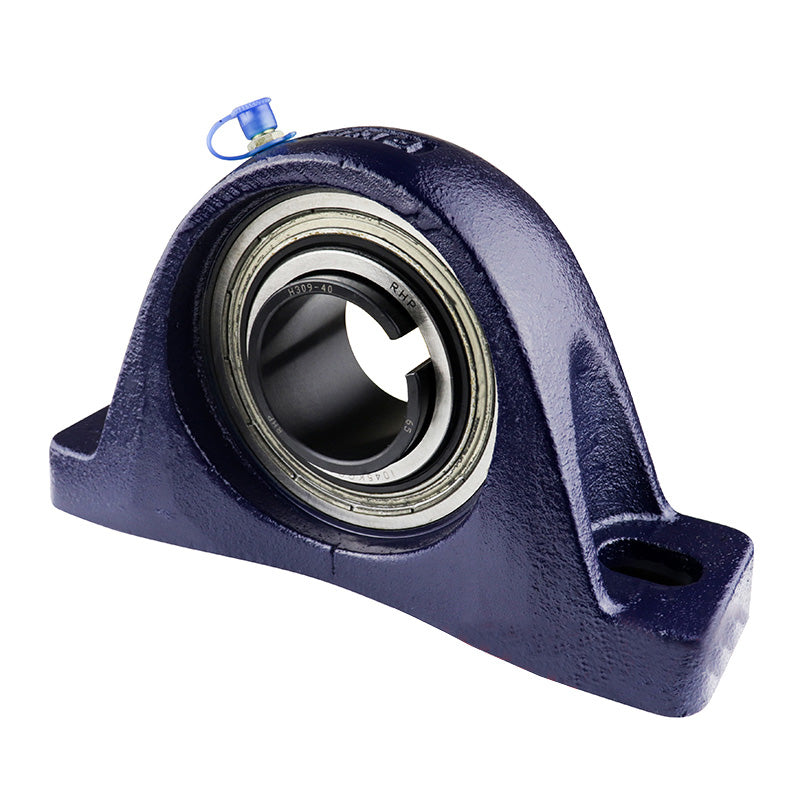

RHP NP K Series Plummer / Pillow Housings: Supplied with a sealed full width taper bore bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate fitting with a taper sleeve (not supplied) which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- NP
- Bolt Hole Centres:
- 5-5.827 inch
Technical
Technical
| L | 7.106 inch |
|---|---|
| H | 1.937 inch |
| H1 | 0.728 inch |
| H2 | 3.878 inch |
| J max | 5.827 inch |
| J min | 5 inch |
| G | 0.5 inch |
| A | 2.008 inch |
| A1 | 1.358 |
| B5 | 1.417 |
| d4 | 2.283 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 2.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040K+insonly">1040K Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
