SKU: NP1025K-RHP

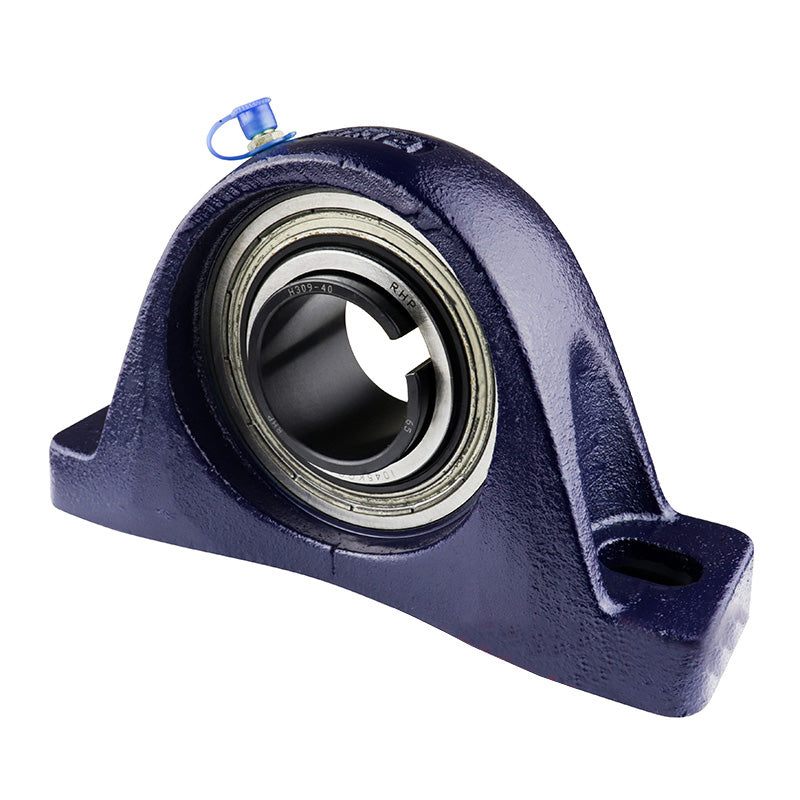

RHP NP1025K Two Bolt Cast Iron Pillow Block and 3/4 Bore and Taper Bore Insert (No Sleeve)
RHP NP1025K Two Bolt Cast Iron Pillow Block and 3/4 Bore and Taper Bore Insert (No Sleeve)
Regular price
Rs. 4,759.08
ex VAT
Regular price
Sale price
Rs. 4,759.08
ex VAT
In stock
Price Break
10+
Rs. 4,235.58
19+
Rs. 3,997.63
29+
Rs. 3,950.04
39+
Rs. 3,902.45
49+
Rs. 3,854.85
74+
Rs. 3,807.26
99+
Rs. 3,569.31
199+
Rs. 3,521.72
249+
Rs. 3,474.13
499+
Rs. 3,426.54
999+
Rs. 3,331.36
Couldn't load pickup availability
Description
Description
|
RHP NP K Series Plummer / Pillow Housings: Supplied with a sealed full width taper bore bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate fitting with a taper sleeve (not supplied) which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- NP
- Bolt Hole Centres:
- 3.811-4.437 inch
Technical
Technical
| L | 5.472 inch |
|---|---|
| H | 1.437 inch |
| H1 | 0.63 inch |
| H2 | 2.795 inch |
| J max | 4.437 inch |
| J min | 3.811 inch |
| G | 0.375 inch |
| A | 1.437 inch |
| A1 | 0.965 |
| B5 | 1.142 |
| d4 | 1.496 inch |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025K+insonly">1025K Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
