• RHP NP1-5/8 Two Bolt Cast Iron Pillow Block and 1-5/8 Bore Grub Screw Full Width Insert
1 1

SKU: NP1.5/8-RHP

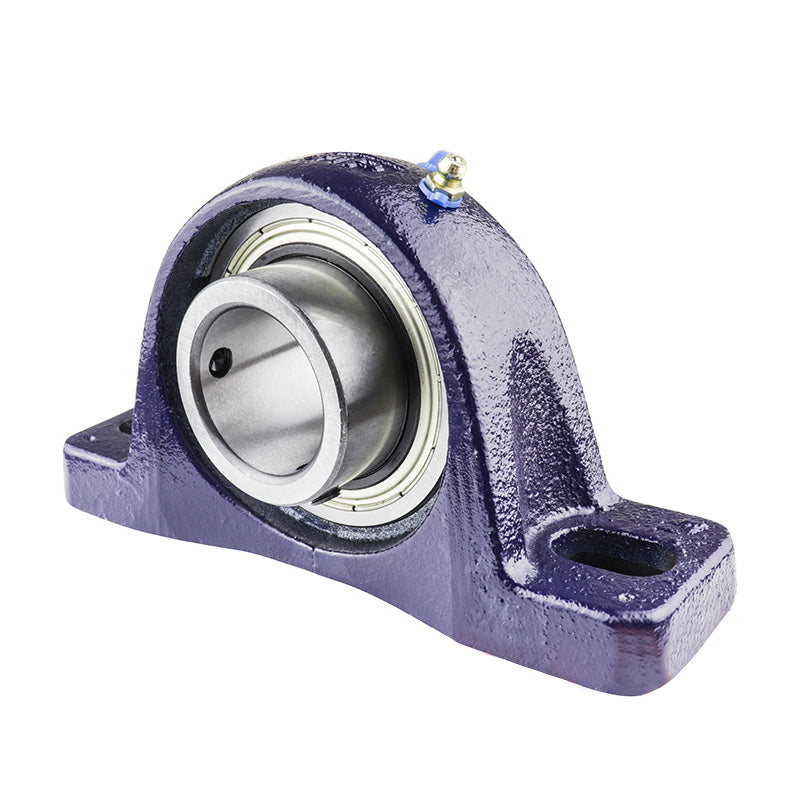

RHP NP1-5/8 Two Bolt Cast Iron Pillow Block and 1-5/8 Bore Grub Screw Full Width Insert

RHP NP1-5/8 Two Bolt Cast Iron Pillow Block and 1-5/8 Bore Grub Screw Full Width Insert
Rs. 9,365.85
Rs. 9,365.85
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 8,335.61
19+ Rs. 7,867.31
29+ Rs. 7,773.66
39+ Rs. 7,680.00
49+ Rs. 7,586.34
74+ Rs. 7,492.68
99+ Rs. 7,024.39
199+ Rs. 6,930.73
249+ Rs. 6,837.07
499+ Rs. 6,743.41
999+ Rs. 6,556.10
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP NP Series Plummer / Pillow Housings: Supplied with a full width sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full with insert, grub screw fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
41.28mm = 1.625 (1-5/8) inch
Style:
NP
Bolt Hole Centres:
5.531-6.083 inch
Technical
Bore 1-5/8 inch
L 7.5 inch
H 2.126 inch
H1 0.787 inch
H2 4.252 inch
J max 6.083 inch
J min 5.531 inch
G 0.5 inch
A 2.126 inch
A1 1.378 inch
B 1.938 inch
s 0.752 inch
d1 2.256 inch
Dynamic load Cr 32500 N
Static load Cor 20500 N
Rec max speed 3700 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1045-1-5/8G+insonly">1045-1-5/8G Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
