SKU: NP1.3/8DEC-RHP

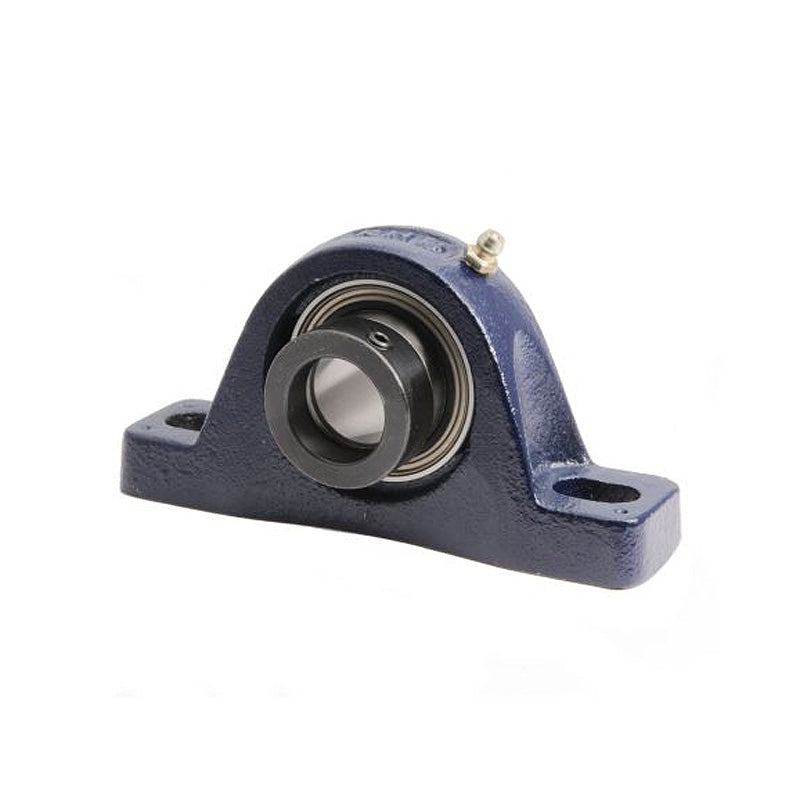

RHP NP1-3/8DEC Two Bolt Cast Iron Pillow Block and 1-3/8 Bore Eccentric Collar Full Width Insert
RHP NP1-3/8DEC Two Bolt Cast Iron Pillow Block and 1-3/8 Bore Eccentric Collar Full Width Insert
Regular price
Rs. 8,494.05
Regular price
Sale price
Rs. 8,494.05
Taxes included.
In stock
Price Break
10+
Rs. 7,559.70
19+
Rs. 7,135.00
29+
Rs. 7,050.06
39+
Rs. 6,965.12
49+
Rs. 6,880.18
74+
Rs. 6,795.24
99+
Rs. 6,370.54
199+
Rs. 6,285.60
249+
Rs. 6,200.66
499+
Rs. 6,115.72
999+
Rs. 5,945.84
Description
Description
|
RHP NP-DEC Series Plummer / Pillow Housings: Supplied with a full width sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft once fitted. The insert can be removed from the housings for future replacement as required. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- NP
- Bolt Hole Centres:
- 4.783-5.374 inch
Technical
Technical
| Bore | 1-3/8 inch |
|---|---|
| L | 6.535 inch |
| H | 1.874 inch |
| H1 | 0.689 inch |
| H2 | 3.661 inch |
| J max | 5.374 inch |
| J min | 4.783 inch |
| G | 0.5 inch |
| A | 1.752 inch |
| A1 | 1.201 inch |
| B3 | 2.015 inch |
| s2 | 0.744 inch |
| d2 | 2.188 inch |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-1-3/8DECG+insonly">1035-1-3/8DECG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
