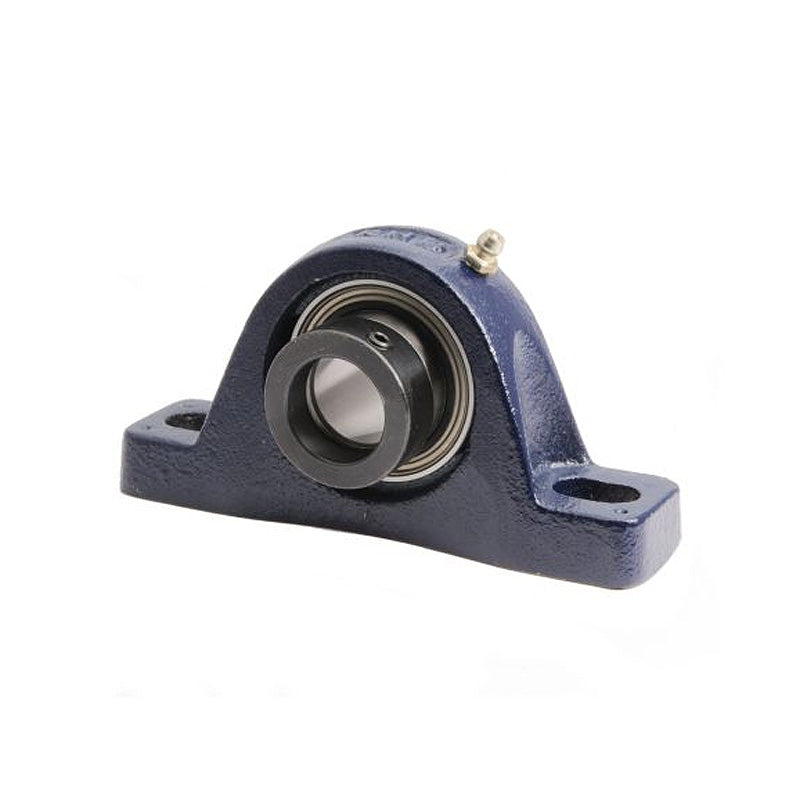

• RHP NP1-15/16EC Two Bolt Cast Iron Pillow Block and 1-15/16 Bore Eccentric Collar Flat Back Insert
1 1

SKU: NP1.15/16EC-RHP

RHP NP1-15/16EC Two Bolt Cast Iron Pillow Block and 1-15/16 Bore Eccentric Collar Flat Back Insert

RHP NP1-15/16EC Two Bolt Cast Iron Pillow Block and 1-15/16 Bore Eccentric Collar Flat Back Insert
Rs. 11,808.45
Rs. 11,808.45
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 10,509.52
19+ Rs. 9,919.10
29+ Rs. 9,801.01
39+ Rs. 9,682.93
49+ Rs. 9,564.84
74+ Rs. 9,446.76
99+ Rs. 8,856.34
199+ Rs. 8,738.25
249+ Rs. 8,620.17
499+ Rs. 8,502.08
999+ Rs. 8,265.92
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP NP-EC Series Plummer / Pillow Housings: Supplied with a flat back sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation.
The insert can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar / grub screw fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
49.21mm = 1.937 (1-15/16) inch
Style:
NP
Bolt Hole Centres:
6.063-6.417 inch

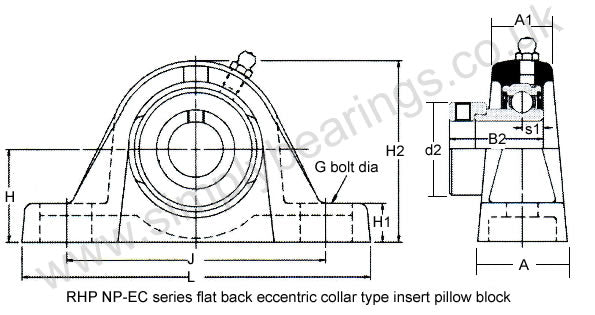

Technical
Bore 1-15/16 inch
L 8.11 inch
H 2.252 inch
H1 0.827 inch
H2 4.535 inch
J max 6.417 inch
J min 6.063 inch
G 0.625 inch
A 2.165 inch
A1 1.417 inch
B2 1.718 inch
s1 0.435 inch
d2 2.75 inch
Dynamic load Cr 35000 N
Static load Cor 23200 N
Rec max speed 3400 rpm
Weight 3.2 kg
Insert <a href="advanced_search_result.php?keywords=1250-1-15/16ECG+insonly">1250-1-15/16ECG Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
