SKU: NKXR45-EU

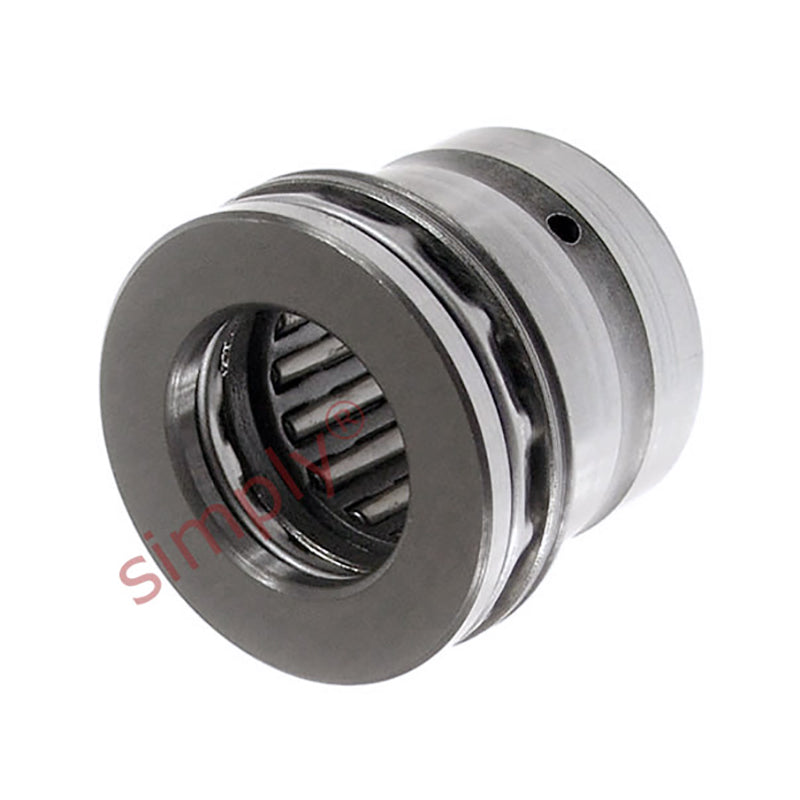

NKXR45 Budget Needle Roller Thrust Bearing without Cover 45x58x32mm
NKXR45 Budget Needle Roller Thrust Bearing without Cover 45x58x32mm
Regular price
Rs. 10,366.44
ex VAT
Regular price
Sale price
Rs. 10,366.44
ex VAT
In stock
Price Break
10+
Rs. 9,226.13
19+
Rs. 8,707.81
29+
Rs. 8,604.15
39+
Rs. 8,500.48
49+
Rs. 8,396.82
74+
Rs. 8,293.15
99+
Rs. 7,774.83
199+
Rs. 7,671.17
249+
Rs. 7,567.50
499+
Rs. 7,463.84
999+
Rs. 7,256.51
Couldn't load pickup availability
Description
Description
Budget Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 58mm
- Width:
- 32mm
Technical
Technical
| Fw | 45mm |
|---|---|
| D | 58mm |
| C | 32mm |
| Dynamic load | 28100 N |
| Static load | 57000 N |
| Axial dynamic load | 45000 N |
| Axial static load | 153000 N |
| Fatigue load limit radial Pu | 7100 N |
| Fatigue load limit axial Pu | 15300 N |
| Min load factor A | 1.9 |
| Speed in grease | 1600 rpm |
| Speed in oil | 2200 rpm |
| C1 | 14mm |
| C2 | 9mm |
| d | 45mm |
| D1 | 65mm |
| r1r2 min | 0.6mm |
| da | 60.6mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
| di | 40mm |
| F | 45mm |
| B1 | 20mm |
| Inner ring | IR40x45x20 |
| Weight | 240 g |
