SKU: NKXR20-MB

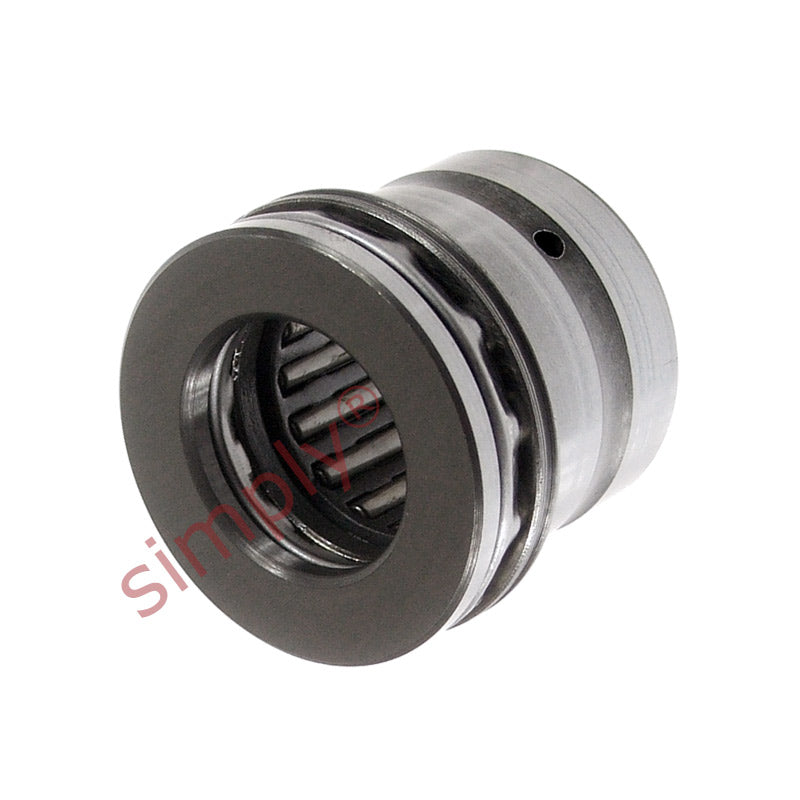

Major Brand NKXR20 Needle Roller Thrust Bearing without Cover 20x30x30mm
Major Brand NKXR20 Needle Roller Thrust Bearing without Cover 20x30x30mm
Regular price
Rs. 11,876.30
Regular price
Sale price
Rs. 11,876.30
Taxes included.
In stock
Price Break
10+
Rs. 10,569.91
19+
Rs. 9,976.09
29+
Rs. 9,857.33
39+
Rs. 9,738.57
49+
Rs. 9,619.80
74+
Rs. 9,501.04
99+
Rs. 8,907.23
199+
Rs. 8,788.46
249+
Rs. 8,669.70
499+
Rs. 8,550.94
999+
Rs. 8,313.41
Description
Description
Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 30mm
- Width:
- 30mm

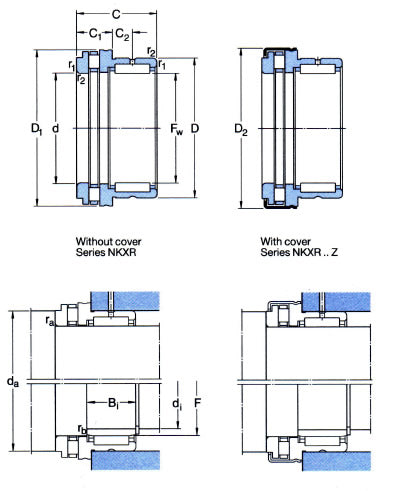

Technical
Technical
| Fw | 20mm |
|---|---|
| D | 30mm |
| C | 30mm |
| Dynamic load | 16800 N |
| Static load | 26000 N |
| Axial dynamic load | 18600 N |
| Axial static load | 48000 N |
| Fatigue load limit radial Pu | 3050 N |
| Fatigue load limit axial Pu | 4650 N |
| Min load factor A | 0.18 |
| Speed in grease | 2800 rpm |
| Speed in oil | 3800 rpm |
| C1 | 10mm |
| C2 | 10.5mm |
| d | 20 |
