SKU: NKX20Z-EU

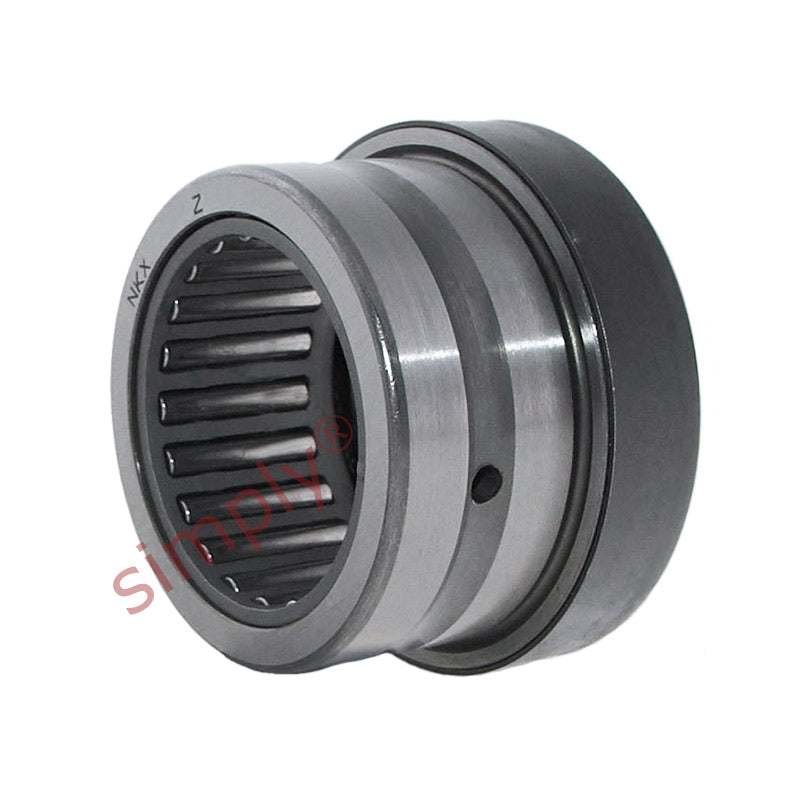

NKX20Z Budget Needle / Ball Thrust Bearing with Closure Ring/Cover 20x30x30mm
NKX20Z Budget Needle / Ball Thrust Bearing with Closure Ring/Cover 20x30x30mm
Regular price
Rs. 2,310.74
Regular price
Sale price
Rs. 2,310.74
Taxes included.
In stock
Price Break
10+
Rs. 2,056.56
19+
Rs. 1,941.02
29+
Rs. 1,917.91
39+
Rs. 1,894.81
49+
Rs. 1,871.70
74+
Rs. 1,848.59
99+
Rs. 1,733.06
199+
Rs. 1,709.95
249+
Rs. 1,686.84
499+
Rs. 1,663.73
999+
Rs. 1,617.52
Description
Description
Budget Needle Roller / Ball Thrust Combination: Of a non separable design has a cover attached to the housing washer which extends over the needle roller bearing outer ring, these are particularly suited to grease lubrication as the cover acts to retain the lubricant. They are able to support heavy single direction thrust loads in addition to radial loads, they also permit relatively high speed operation. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 30mm
- Width:
- 30mm
- Seals / Shields:
- Metal Shields
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 30mm |
| C | 30mm |
| Radial dynamic load | 16800 N |
| Radial static load | 26000 N |
| Axial dynamic load | 14300 N |
| Axial static load | 27000 N |
| Fatigue load limit radial Pu | 3050 N |
| Fatigue load limit axial Pu | 1000 N |
| Min load factor | 3.8 |
| Speed in grease | 5600 rpm |
| Speed in oil | 7500 rpm |
| C1 | 10mm |
| C2 | 10.5mm |
| d | 20mm |
| d1 | 30.7mm |
| D2 | 36.2mm |
| r1r2 min | 0.3mm |
| da min | 29mm |
| db max | 30.7mm |
| ra max | 0.3mm |
| rb max | 0.3mm |
| di | 17mm |
| F | 20mm |
| Bi | 20mm |
| Inner ring | IR17x20x20 |
| Weight | 90 g |
