SKU: NKIS45-MB

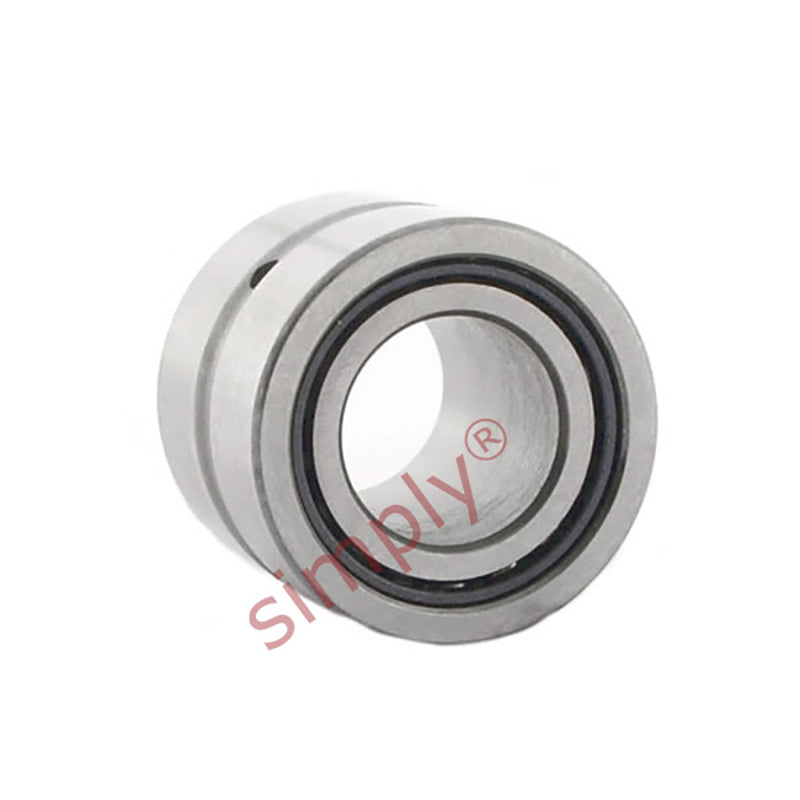

Major Brand NKIS45 Needle Roller Bearing With Shaft Sleeve 45x72x22mm
Major Brand NKIS45 Needle Roller Bearing With Shaft Sleeve 45x72x22mm
Regular price
Rs. 7,551.83
Regular price
Sale price
Rs. 7,551.83
Taxes included.
In stock
Price Break
10+
Rs. 6,721.13
19+
Rs. 6,343.54
29+
Rs. 6,268.02
39+
Rs. 6,192.50
49+
Rs. 6,116.98
74+
Rs. 6,041.46
99+
Rs. 5,663.87
199+
Rs. 5,588.35
249+
Rs. 5,512.84
499+
Rs. 5,437.32
999+
Rs. 5,286.28
Description
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 72mm
- Width:
- 22mm

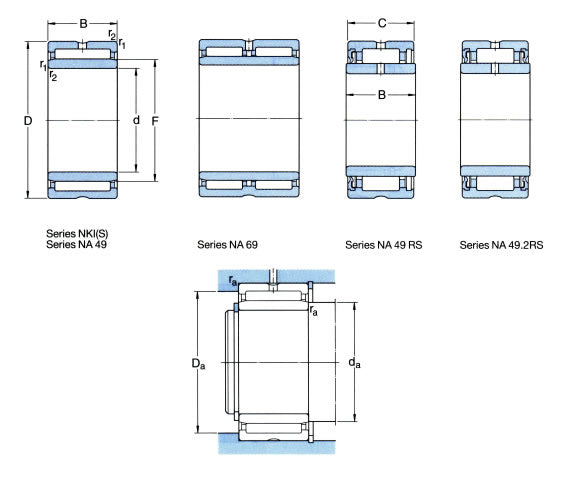

Technical
Technical
| d | 45mm |
|---|---|
| D | 72mm |
| B | 22mm |
| Dynamic load | 44600 N |
| Static load | 78000 N |
| Fatigue load limit Pu | 10000 N |
| Speed in grease | 5000 rpm |
| Speed in oil | 7000 rpm |
| F | 55mm |
| r1r2 | 1mm |
| S (axial disp) | 0.5mm |
| da min | 50mm |
| Da max | 67mm |
| ra max | 1mm |
