SKU: NKIS45-EU

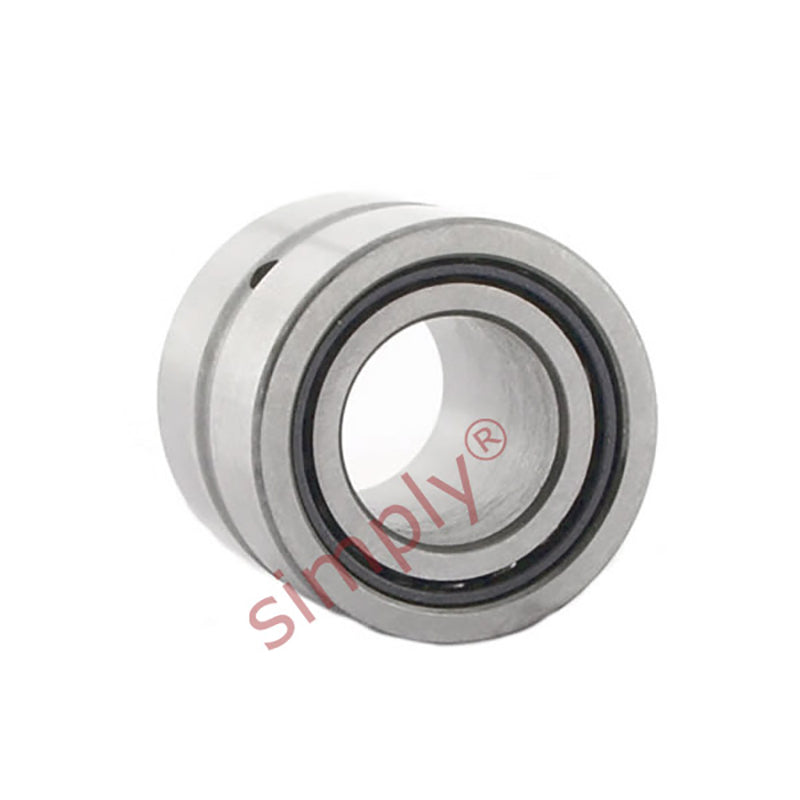

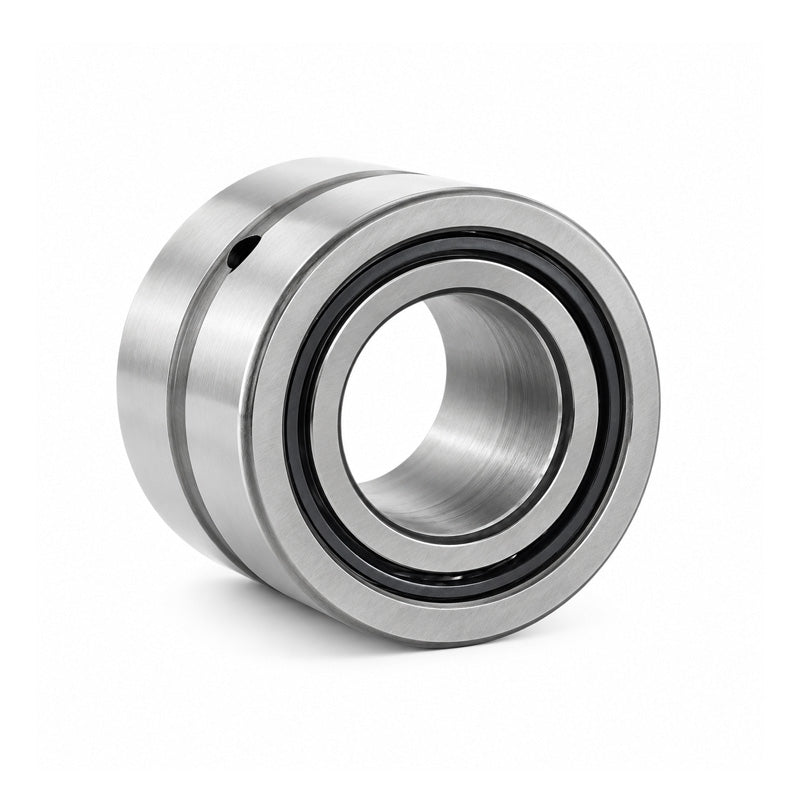

NKIS45 Budget Needle Roller Bearing / Shaft Sleeve 45x72x22mm
NKIS45 Budget Needle Roller Bearing / Shaft Sleeve 45x72x22mm
Regular price
Rs. 1,926.68
Regular price
Sale price
Rs. 1,926.68
Taxes included.
In stock
Price Break
10+
Rs. 1,714.75
19+
Rs. 1,618.41
29+
Rs. 1,599.14
39+
Rs. 1,579.88
49+
Rs. 1,560.61
74+
Rs. 1,541.34
99+
Rs. 1,445.01
199+
Rs. 1,425.74
249+
Rs. 1,406.48
499+
Rs. 1,387.21
999+
Rs. 1,348.68
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 72mm
- Width:
- 22mm
Technical
Technical
| d | 45mm |
|---|---|
| D | 72mm |
| B | 22mm |
| Dynamic load C | 44600 N |
| Static load Co | 78000 N |
| Fatigue load limit Pu | 10000 N |
| Speed in grease | 5000 rpm |
| Speed in oil | 7000 rpm |
| F | 55mm |
| r1r2 | 1mm |
| S (axial disp) | 0.5mm |
| da min | 50mm |
| Da max | 67mm |
| ra max | 1mm |
