SKU: NKIS40-EU

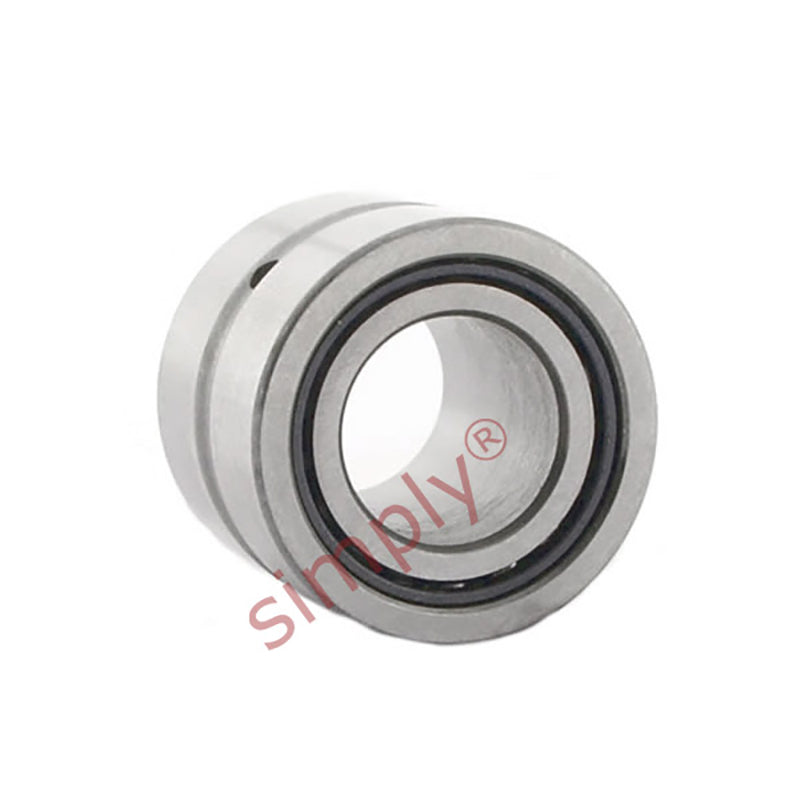

NKIS40 Budget Needle Roller Bearing / Shaft Sleeve 40x65x22mm
NKIS40 Budget Needle Roller Bearing / Shaft Sleeve 40x65x22mm
Regular price
Rs. 2,795.93
Regular price
Sale price
Rs. 2,795.93
Taxes included.
In stock
Price Break
10+
Rs. 2,488.38
19+
Rs. 2,348.58
29+
Rs. 2,320.62
39+
Rs. 2,292.66
49+
Rs. 2,264.70
74+
Rs. 2,236.74
99+
Rs. 2,096.95
199+
Rs. 2,068.99
249+
Rs. 2,041.03
499+
Rs. 2,013.07
999+
Rs. 1,957.15
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 65mm
- Width:
- 22mm
Technical
Technical
| d | 40mm |
|---|---|
| D | 65mm |
| B | 22mm |
| Dynamic load C | 42900 N |
| Static load Co | 72000 N |
| Fatigue load limit Pu | 9150 N |
| Speed in grease | 5600 rpm |
| Speed in oil | 8000 rpm |
| F | 50mm |
| r1r2 | 1mm |
| S (axial disp) | 0.5mm |
| da min | 45mm |
| Da max | 60mm |
| ra max | 1mm |
