SKU: NKIS17-EU

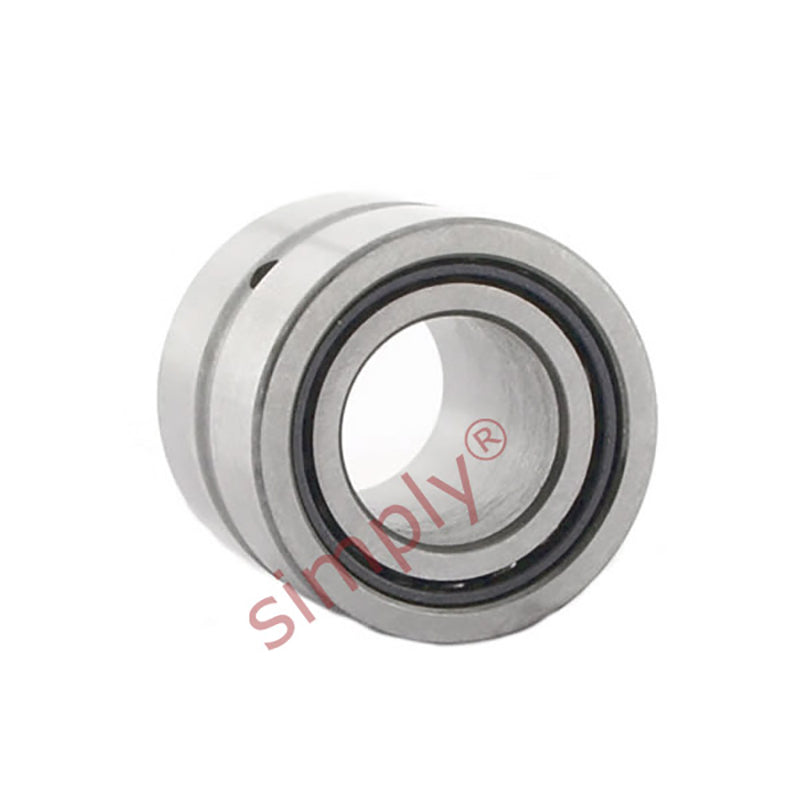

NKIS17 Budget Needle Roller Bearing / Shaft Sleeve 17x37x20mm
NKIS17 Budget Needle Roller Bearing / Shaft Sleeve 17x37x20mm
Regular price
Rs. 1,034.39
Regular price
Sale price
Rs. 1,034.39
Taxes included.
In stock
Price Break
10+
Rs. 920.61
19+
Rs. 868.89
29+
Rs. 858.54
39+
Rs. 848.20
49+
Rs. 837.86
74+
Rs. 827.51
99+
Rs. 775.79
199+
Rs. 765.45
249+
Rs. 755.10
499+
Rs. 744.76
999+
Rs. 724.07
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 37mm
- Width:
- 20mm
Technical
Technical
| d | 17mm |
|---|---|
| D | 37mm |
| B | 20mm |
| Dynamic load C | 26000 N |
| Static load Co | 33500 N |
| Fatigue load limit Pu | 4250 N |
| Speed in grease | 9500 rpm |
| Speed in oil | 15000 rpm |
| F | 24mm |
| r1r2 | 0.6mm |
| S (axial disp) | 0.5mm |
| da min | 21mm |
| Da max | 33mm |
| ra max | 0.6mm |
