SKU: NKIB5906-MB

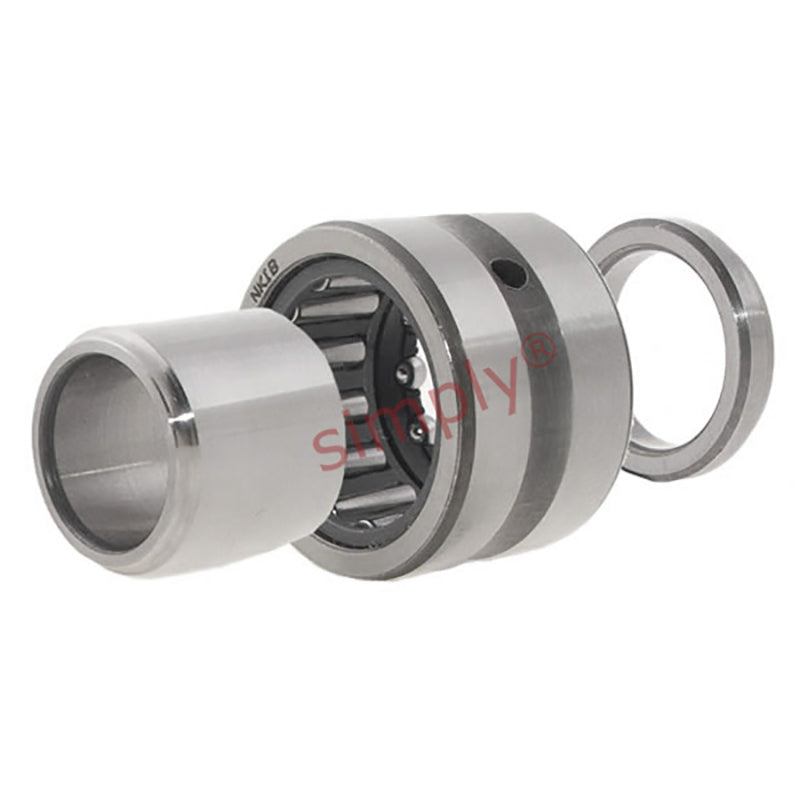

Major Brand NKIB5906 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series
Major Brand NKIB5906 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series
Regular price
Rs. 7,409.73
Regular price
Sale price
Rs. 7,409.73
Taxes included.
In stock
Price Break
10+
Rs. 6,594.66
19+
Rs. 6,224.17
29+
Rs. 6,150.08
39+
Rs. 6,075.98
49+
Rs. 6,001.88
74+
Rs. 5,927.78
99+
Rs. 5,557.30
199+
Rs. 5,483.20
249+
Rs. 5,409.10
499+
Rs. 5,335.01
999+
Rs. 5,186.81
Description
Description
INA NKIB Needle Roller / Angular Contact Ball Bearings: This versatile bearing solution combines a radial needle bearing with an angular contact ball bearing. This enables it to handle heavy radial and light axial loads in both directions. This bearing is designed for high-speed operation and features a low cross-sectional height, making it ideal for space-constrained applications. Additionally, it offers a detachable design for ease of maintenance and assembly.
Benefits: High load-carrying capacity, high-speed capability, low cross-section
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 25mm
Technical
Technical

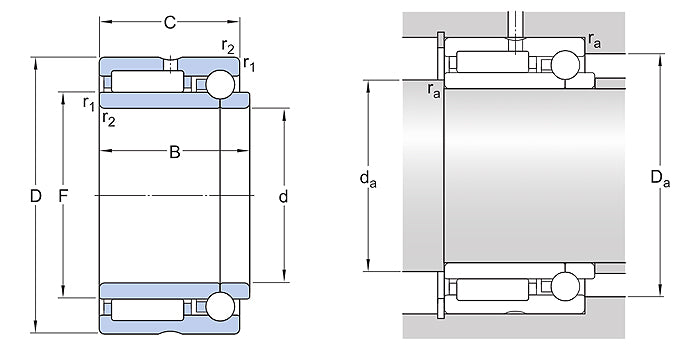

| d | 30mm |
|---|---|
| D | 47mm |
| B | 25mm |
| C | 23mm |
| Radial dynamic load | 25500 N |
| Radial static load | 39000 N |
| Axial dynamic load | 4540 N |
| Axial static load | 6320 N |
| Fatigue load limit radial Pu | 4650 N |
| Fatigue load limit axial Pu | 268 N |
| Speed in grease | 7500 rpm |
| Speed in oil | 11000 rpm |
| F | 35mm |
| r1r2 | 0.3mm |
| da min | 32mm |
| Da max | 45mm |
| ra max | 0.3mm |
