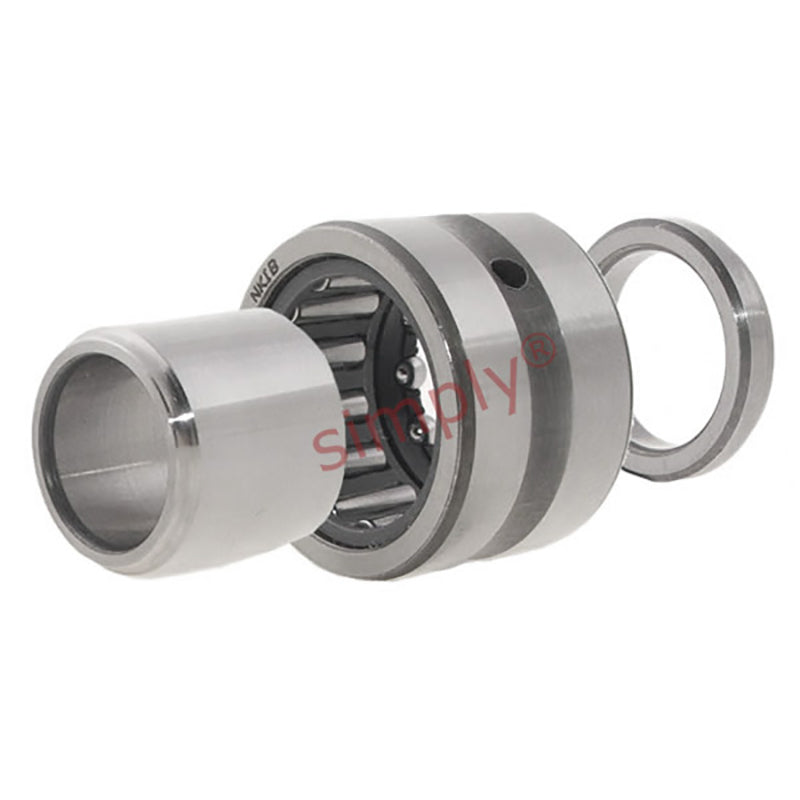

Major Brand NKIB5904 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series
Major Brand NKIB5904 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series
Regular price
Rs. 5,415.07
ex VAT
Regular price
Sale price
Rs. 5,415.07
ex VAT
In stock
Price Break
10+
Rs. 4,819.41
19+
Rs. 4,548.66
29+
Rs. 4,494.51
39+
Rs. 4,440.36
49+
Rs. 4,386.21
74+
Rs. 4,332.06
99+
Rs. 4,061.30
199+
Rs. 4,007.15
249+
Rs. 3,953.00
499+
Rs. 3,898.85
999+
Rs. 3,790.55
Couldn't load pickup availability
Description
Description
INA NKIB Needle Roller / Angular Contact Ball Bearings: This versatile bearing solution combines a radial needle bearing with an angular contact ball bearing. This enables it to handle heavy radial and light axial loads in both directions. This bearing is designed for high-speed operation and features a low cross-sectional height, making it ideal for space-constrained applications. Additionally, it offers a detachable design for ease of maintenance and assembly.
Benefits: High load-carrying capacity, high-speed capability, low cross-section
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 37mm
- Width:
- 25mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 37mm |
| B | 25mm |
| C | 23mm |
| Radial dynamic load | 21600 N |
| Radial static load | 28000 N |
| Axial dynamic load | 3790 N |
| Axial static load | 4210 N |
| Fatigue load limit radial Pu | 3350 N |
| Fatigue load limit axial Pu | 176 N |
| Speed in grease | 9500 rpm |
| Speed in oil | 15000 rpm |
| F | 25mm |
| r1r2 | 0.3mm |
| da min | 22mm |
| Da max | 35mm |
| ra max | 0.3mm |
