SKU: NKIB5904-EU

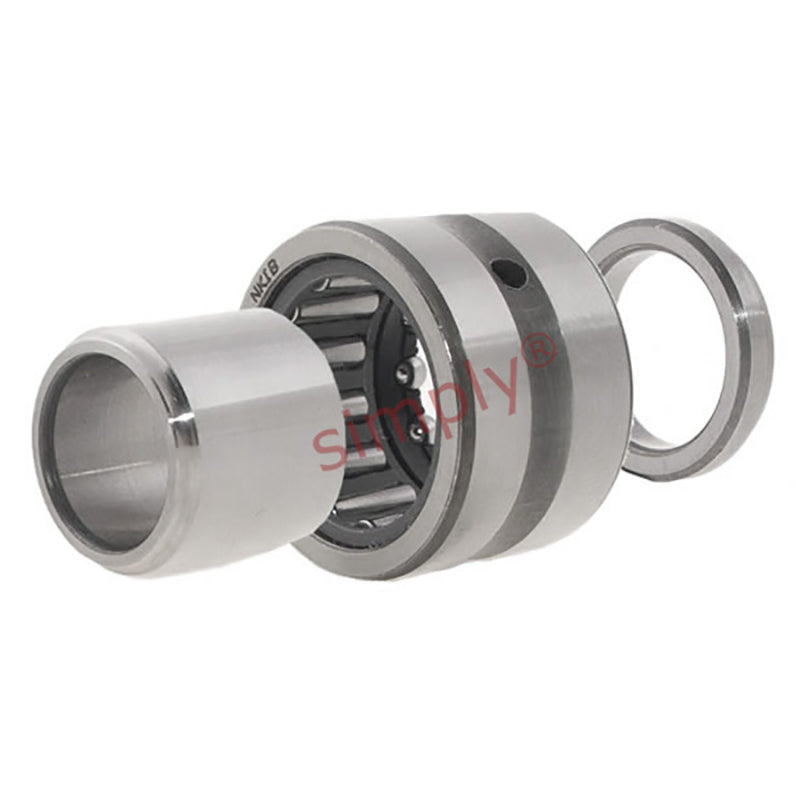

NKIB5904 Budget Needle Roller / Angular Contact Ball Bearing 20x37x25mm
NKIB5904 Budget Needle Roller / Angular Contact Ball Bearing 20x37x25mm
Regular price
Rs. 1,792.08
ex VAT
Regular price
Sale price
Rs. 1,792.08
ex VAT
In stock
Price Break
10+
Rs. 1,594.95
19+
Rs. 1,505.35
29+
Rs. 1,487.43
39+
Rs. 1,469.51
49+
Rs. 1,451.58
74+
Rs. 1,433.66
99+
Rs. 1,344.06
199+
Rs. 1,326.14
249+
Rs. 1,308.22
499+
Rs. 1,290.30
999+
Rs. 1,254.46
Couldn't load pickup availability
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a two directions and are easily mountable as they are supplied with a separable inner ring. (Use NKIA where single direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 37mm
- Width:
- 25mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 37mm |
| B | 25mm |
| C | 23mm |
| Radial dynamic load | 21600 N |
| Radial static load | 28000 N |
| Axial dynamic load | 3790 N |
| Axial static load | 4210 N |
| Fatigue load limit radial Pu | 3350 N |
| Fatigue load limit axial Pu | 176 N |
| Speed in grease | 9500 rpm |
| Speed in oil | 15000 rpm |
| F | 25mm |
| r1r2 | 0.3mm |
| da min | 22mm |
| Da max | 35mm |
| ra max | 0.3mm |
| Weight | 110 g |
