SKU: NKIB5902-EU

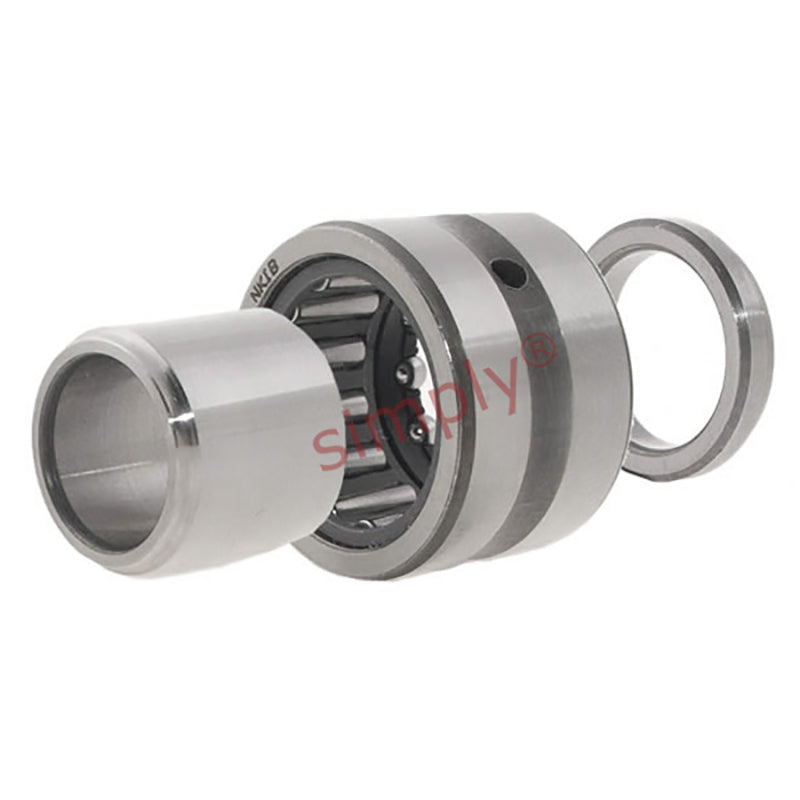

NKIB5902 Budget Needle Roller / Angular Contact Ball Bearing 15x28x20mm
NKIB5902 Budget Needle Roller / Angular Contact Ball Bearing 15x28x20mm
Regular price
Rs. 3,089.48
ex VAT
Regular price
Sale price
Rs. 3,089.48
ex VAT
In stock
Price Break
10+
Rs. 2,749.64
19+
Rs. 2,595.16
29+
Rs. 2,564.27
39+
Rs. 2,533.37
49+
Rs. 2,502.48
74+
Rs. 2,471.58
99+
Rs. 2,317.11
199+
Rs. 2,286.22
249+
Rs. 2,255.32
499+
Rs. 2,224.43
999+
Rs. 2,162.64
Couldn't load pickup availability
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a two directions and are easily mountable as they are supplied with a separable inner ring. (Use NKIA where single direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 20mm
Technical
Technical
| d | 15mm |
|---|---|
| D | 28mm |
| B | 20mm |
| C | 18mm |
| Radial dynamic load | 11400 N |
| Radial static load | 15600 N |
| Axial dynamic load | 2270 N |
| Axial static load | 2370 N |
| Fatigue load limit radial Pu | 1830 N |
| Fatigue load limit axial Pu | 99 N |
| Speed in grease | 13000 rpm |
| Speed in oil | 19000 rpm |
| F | 20mm |
| r1r2 | 0.3mm |
| da min | 17mm |
| Da max | 26mm |
| ra max | 0.3mm |
| Weight | 52 g |
