SKU: NKIB5901-MB

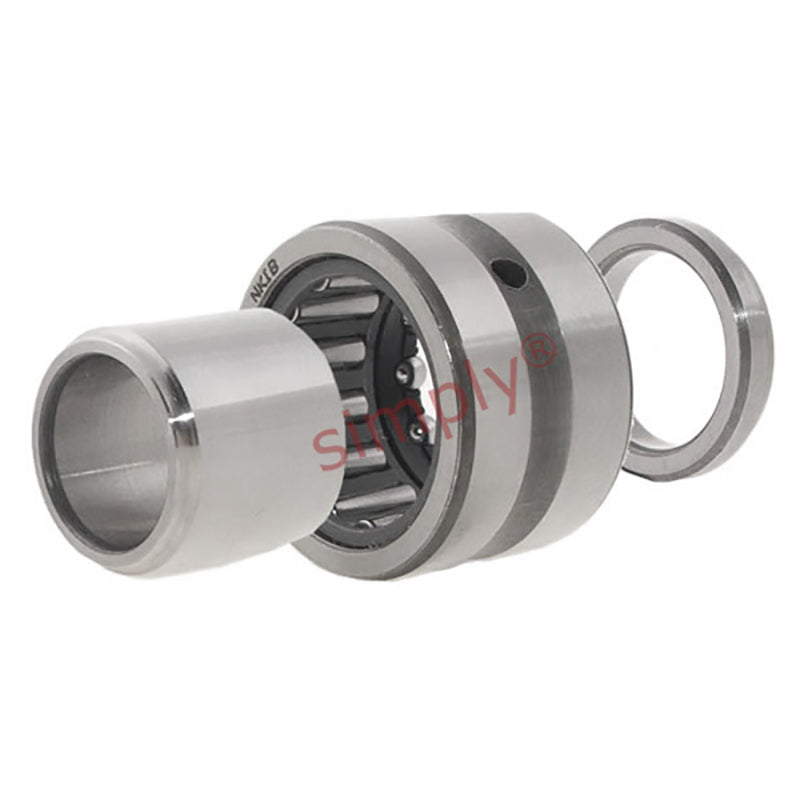

Major Brand NKIB5901 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series
Major Brand NKIB5901 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series
Regular price
Rs. 2,601.16
ex VAT
Regular price
Sale price
Rs. 2,601.16
ex VAT
In stock
Price Break
10+
Rs. 2,315.03
19+
Rs. 2,184.97
29+
Rs. 2,158.96
39+
Rs. 2,132.95
49+
Rs. 2,106.94
74+
Rs. 2,080.93
99+
Rs. 1,950.87
199+
Rs. 1,924.86
249+
Rs. 1,898.85
499+
Rs. 1,872.84
999+
Rs. 1,820.81
Couldn't load pickup availability
Description
Description
INA NKIB Needle Roller / Angular Contact Ball Bearings: This versatile bearing solution combines a radial needle bearing with an angular contact ball bearing. This enables it to handle heavy radial and light axial loads in both directions. This bearing is designed for high-speed operation and features a low cross-sectional height, making it ideal for space-constrained applications. Additionally, it offers a detachable design for ease of maintenance and assembly.
Benefits: High load-carrying capacity, high-speed capability, low cross-section
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 24mm
- Width:
- 17.5mm
Technical
Technical
| d | 12mm |
|---|---|
| D | 24mm |
| B | 17.5mm |
| C | 16mm |
| Radial dynamic load | 8250 N |
| Radial static load | 10000 N |
| Axial dynamic load | 2070 N |
| Axial static load | 1920 N |
| Fatigue load limit radial Pu | 1140 N |
| Fatigue load limit axial Pu | 83 N |
| Speed in grease | 15000 rpm |
| Speed in oil | 22000 rpm |
| F | 16mm |
| r1r2 | 0.3mm |
| da min | 14mm |
| Da max | 22mm |
| ra max | 0.3mm |
