SKU: NKIB59/22-MB

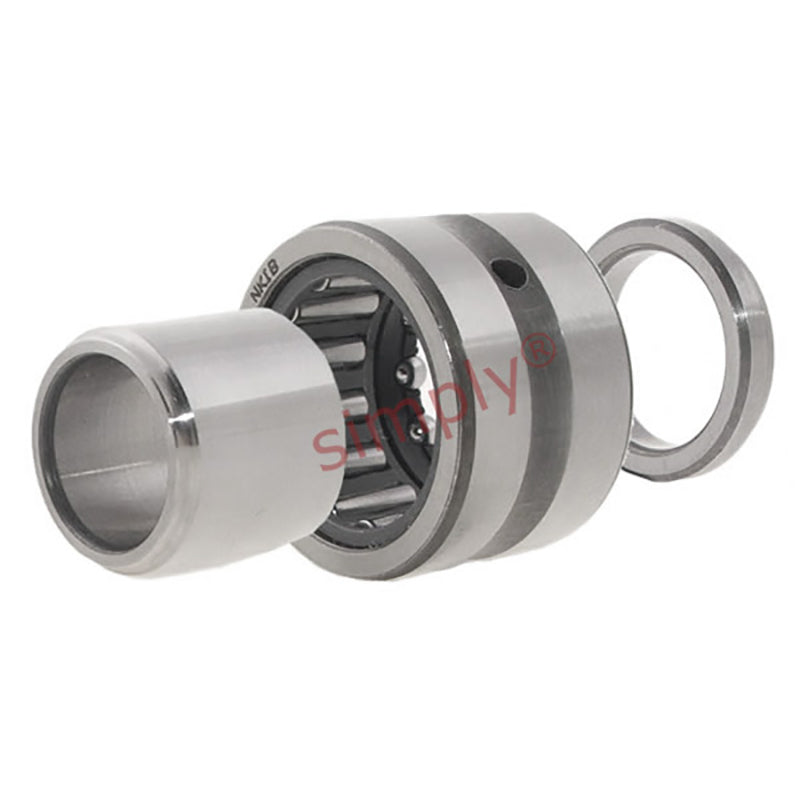

Major Brand NKIB59/22 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series
Major Brand NKIB59/22 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series
Regular price
Rs. 3,178.63
ex VAT
Regular price
Sale price
Rs. 3,178.63
ex VAT
In stock
Price Break
10+
Rs. 2,828.98
19+
Rs. 2,670.05
29+
Rs. 2,638.26
39+
Rs. 2,606.48
49+
Rs. 2,574.69
74+
Rs. 2,542.90
99+
Rs. 2,383.97
199+
Rs. 2,352.19
249+
Rs. 2,320.40
499+
Rs. 2,288.61
999+
Rs. 2,225.04
Couldn't load pickup availability
Description
Description
INA NKIB Needle Roller / Angular Contact Ball Bearings: This versatile bearing solution combines a radial needle bearing with an angular contact ball bearing. This enables it to handle heavy radial and light axial loads in both directions. This bearing is designed for high-speed operation and features a low cross-sectional height, making it ideal for space-constrained applications. Additionally, it offers a detachable design for ease of maintenance and assembly.
Benefits: High load-carrying capacity, high-speed capability, low cross-section
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 39mm
- Width:
- 25mm
Technical
Technical
| d | 22mm |
|---|---|
| D | 39mm |
| B | 25mm |
| C | 23mm |
| Radial dynamic load | 23300 N |
| Radial static load | 32000 N |
| Axial dynamic load | 4140 N |
| Axial static load | 4930 N |
| Fatigue load limit radial Pu | 3900 N |
| Fatigue load limit axial Pu | 205 N |
| Speed in grease | 9000 rpm |
| Speed in oil | 14000 rpm |
| F | 28mm |
| r1r2 | 0.3mm |
| da min | 24mm |
| Da max | 37mm |
| ra max | 0.3mm |
