SKU: NKIA5913-EU

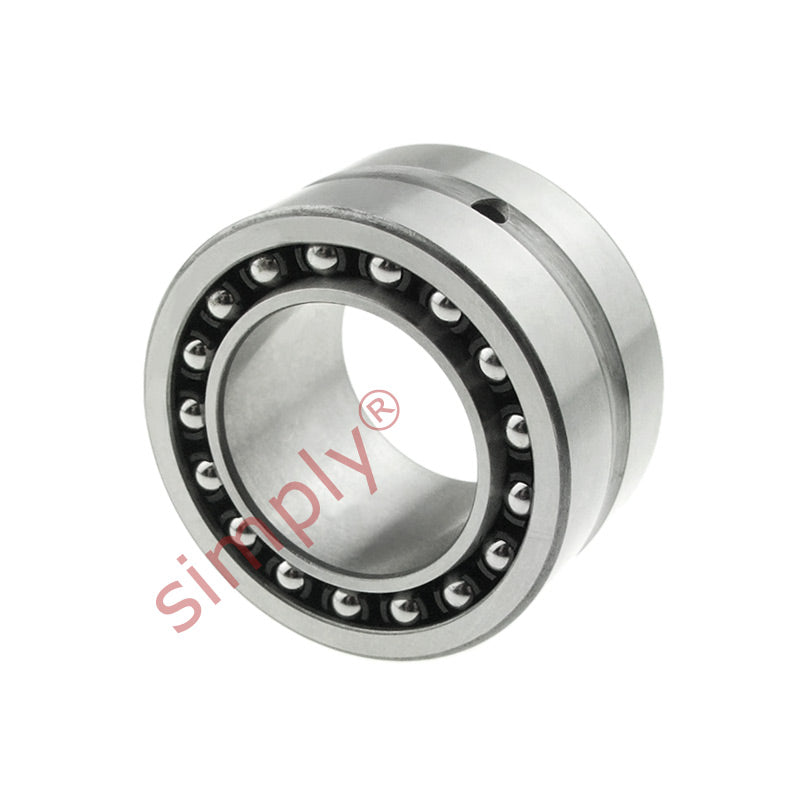

NKIA5913 Budget Needle Roller / Angular Contact Ball Bearing 65x90x34mm
NKIA5913 Budget Needle Roller / Angular Contact Ball Bearing 65x90x34mm
Regular price
Rs. 13,121.96
ex VAT
Regular price
Sale price
Rs. 13,121.96
ex VAT
In stock
Price Break
10+
Rs. 11,678.54
19+
Rs. 11,022.45
29+
Rs. 10,891.23
39+
Rs. 10,760.01
49+
Rs. 10,628.79
74+
Rs. 10,497.57
99+
Rs. 9,841.47
199+
Rs. 9,710.25
249+
Rs. 9,579.03
499+
Rs. 9,447.81
999+
Rs. 9,185.37
Couldn't load pickup availability
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 90mm
- Width:
- 34mm
Technical
Technical
| d | 65mm |
|---|---|
| D | 90mm |
| B | 34mm |
| Radial dynamic load | 60500 N |
| Radial static load | 118000 N |
| Axial dynamic load | 9960 N |
| Axial static load | 19200 N |
| Fatigue load limit radial Pu | 14600 N |
| Fatigue load limit axial Pu | 816 N |
| Speed in grease | 4000 rpm |
| Speed in oil | 5600 rpm |
| F | 72mm |
| r1r2 | 1mm |
| da min | 70mm |
| Da max | 85mm |
| ra max | 1mm |
| Weight | 640 g |
