SKU: NKIA5909-EU

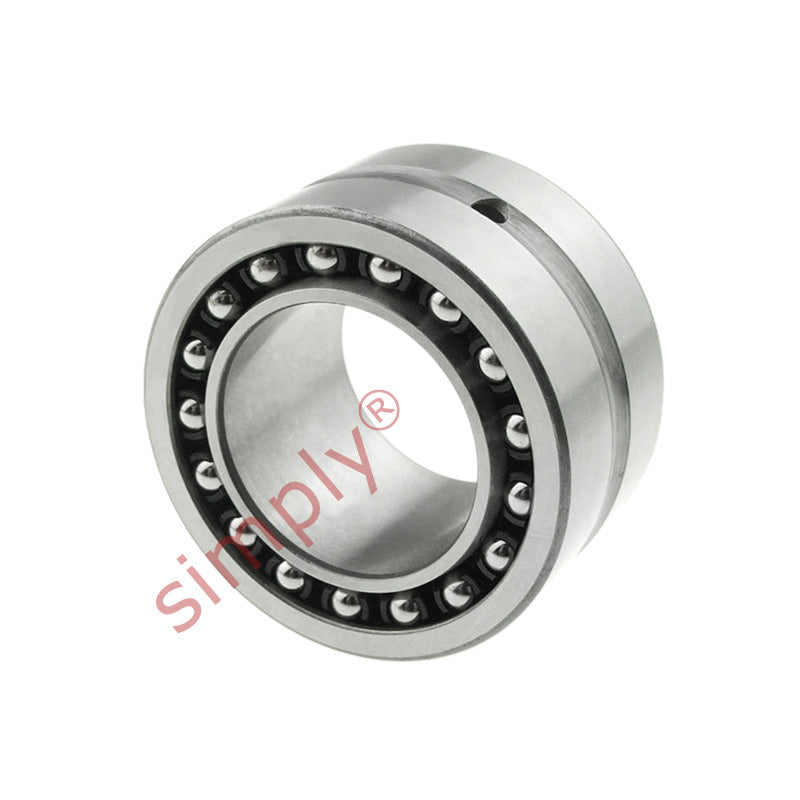

NKIA5909 Budget Needle Roller / Angular Contact Ball Bearing 45x68x30mm
NKIA5909 Budget Needle Roller / Angular Contact Ball Bearing 45x68x30mm
Regular price
Rs. 8,619.50
Regular price
Sale price
Rs. 8,619.50
Taxes included.
In stock
Price Break
10+
Rs. 7,671.36
19+
Rs. 7,240.38
29+
Rs. 7,154.19
39+
Rs. 7,067.99
49+
Rs. 6,981.80
74+
Rs. 6,895.60
99+
Rs. 6,464.63
199+
Rs. 6,378.43
249+
Rs. 6,292.24
499+
Rs. 6,206.04
999+
Rs. 6,033.65
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 68mm
- Width:
- 30mm
Technical
Technical
| d | 45mm |
|---|---|
| D | 68mm |
| B | 30mm |
| Radial dynamic load | 45700 N |
| Radial static load | 78000 N |
| Axial dynamic load | 7470 N |
| Axial static load | 12000 N |
| Fatigue load limit radial Pu | 9650 N |
| Fatigue load limit axial Pu | 513 N |
| Speed in grease | 5300 rpm |
| Speed in oil | 7500 rpm |
| F | 52mm |
| r1r2 | 0.6mm |
| da min | 49mm |
| Da max | 64mm |
| ra max | 0.6mm |
| Weight | 380 g |
