SKU: NKIA5906-EU

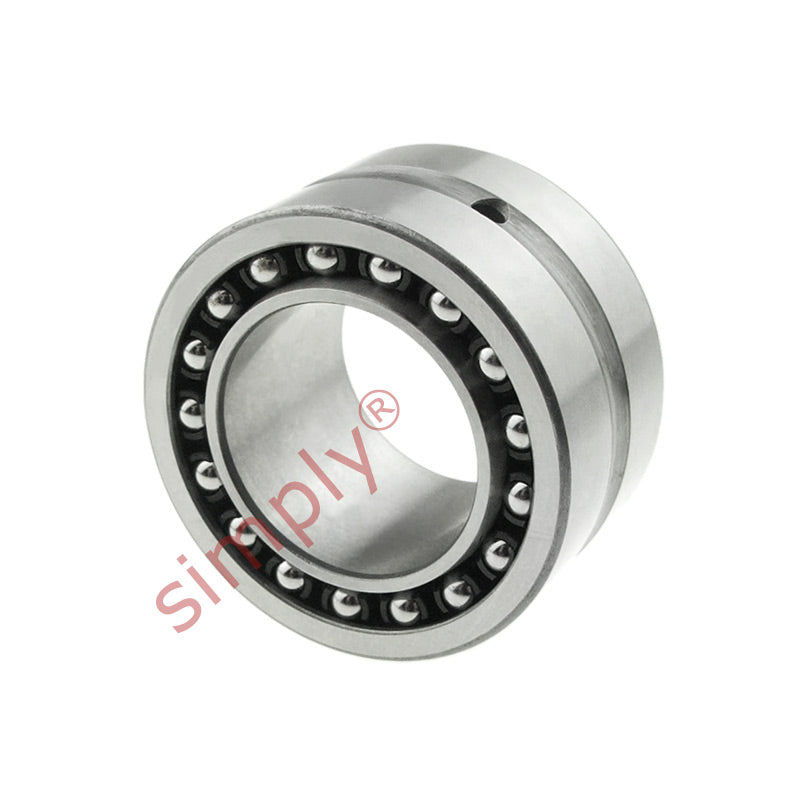

NKIA5906 Budget Needle Roller / Angular Contact Ball Bearing 30x47x23mm
NKIA5906 Budget Needle Roller / Angular Contact Ball Bearing 30x47x23mm
Regular price
Rs. 2,545.01
Regular price
Sale price
Rs. 2,545.01
Taxes included.
In stock
Price Break
10+
Rs. 2,265.06
19+
Rs. 2,137.81
29+
Rs. 2,112.36
39+
Rs. 2,086.91
49+
Rs. 2,061.46
74+
Rs. 2,036.01
99+
Rs. 1,908.76
199+
Rs. 1,883.31
249+
Rs. 1,857.86
499+
Rs. 1,832.41
999+
Rs. 1,781.51
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 23mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 47mm |
| B | 23mm |
| Radial dynamic load | 25500 N |
| Radial static load | 39000 N |
| Axial dynamic load | 4540 N |
| Axial static load | 6320 N |
| Fatigue load limit radial Pu | 4650 N |
| Fatigue load limit axial Pu | 268 N |
| Speed in grease | 7500 rpm |
| Speed in oil | 11000 rpm |
| F | 35mm |
| r1r2 | 0.3mm |
| da min | 32mm |
| Da max | 45mm |
| ra max | 0.3mm |
| Weight | 150 g |
