SKU: NKIA5905-EU

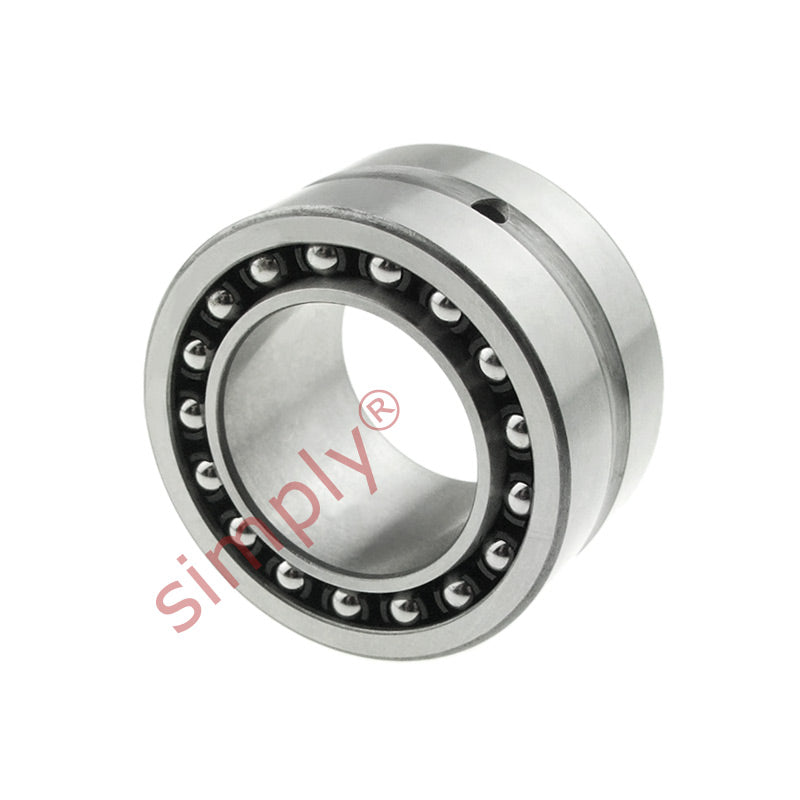

NKIA5905 Budget Needle Roller / Angular Contact Ball Bearing 25x42x23mm
NKIA5905 Budget Needle Roller / Angular Contact Ball Bearing 25x42x23mm
Regular price
Rs. 2,014.49
ex VAT
Regular price
Sale price
Rs. 2,014.49
ex VAT
In stock
Price Break
10+
Rs. 1,792.90
19+
Rs. 1,692.17
29+
Rs. 1,672.03
39+
Rs. 1,651.88
49+
Rs. 1,631.74
74+
Rs. 1,611.59
99+
Rs. 1,510.87
199+
Rs. 1,490.72
249+
Rs. 1,470.58
499+
Rs. 1,450.43
999+
Rs. 1,410.14
Couldn't load pickup availability
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 23mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 42mm |
| B | 23mm |
| Radial dynamic load | 24200 N |
| Radial static load | 34500 N |
| Axial dynamic load | 4240 N |
| Axial static load | 5260 N |
| Fatigue load limit radial Pu | 4150 N |
| Fatigue load limit axial Pu | 224 N |
| Speed in grease | 8500 rpm |
| Speed in oil | 13000 rpm |
| F | 30mm |
| r1r2 | 0.3mm |
| da min | 27mm |
| Da max | 40mm |
| ra max | 0.3mm |
| Weight | 130 g |
