SKU: NKIA5903-EU

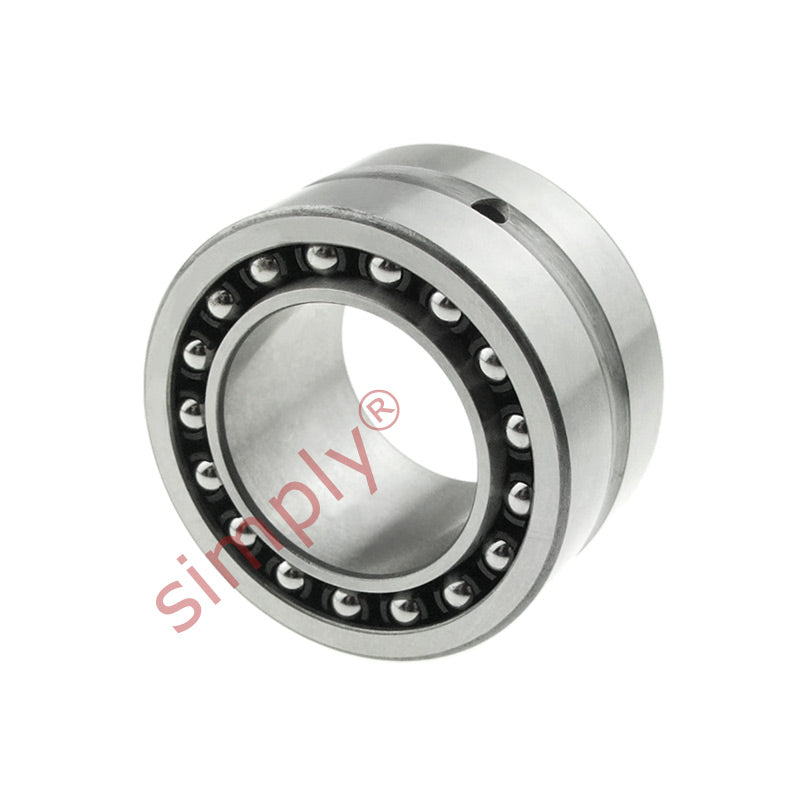

NKIA5903 Budget Needle Roller / Angular Contact Ball Bearing 17x30x18mm
NKIA5903 Budget Needle Roller / Angular Contact Ball Bearing 17x30x18mm
Regular price
Rs. 1,213.62
Regular price
Sale price
Rs. 1,213.62
Taxes included.
In stock
Price Break
10+
Rs. 1,080.12
19+
Rs. 1,019.44
29+
Rs. 1,007.30
39+
Rs. 995.17
49+
Rs. 983.03
74+
Rs. 970.90
99+
Rs. 910.22
199+
Rs. 898.08
249+
Rs. 885.94
499+
Rs. 873.81
999+
Rs. 849.53
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 30mm
- Width:
- 18mm
Technical
Technical
| d | 17mm |
|---|---|
| D | 30mm |
| B | 18mm |
| Radial dynamic load | 11700 N |
| Radial static load | 17000 N |
| Axial dynamic load | 2240 N |
| Axial static load | 2740 N |
| Fatigue load limit radial Pu | 1960 N |
| Fatigue load limit axial Pu | 116 N |
| Speed in grease | 12000 rpm |
| Speed in oil | 18000 rpm |
| F | 22mm |
| r1r2 | 0.3mm |
| da min | 19mm |
| Da max | 28mm |
| ra max | 0.3mm |
| Weight | 56 g |
