SKU: NKIA5902-EU

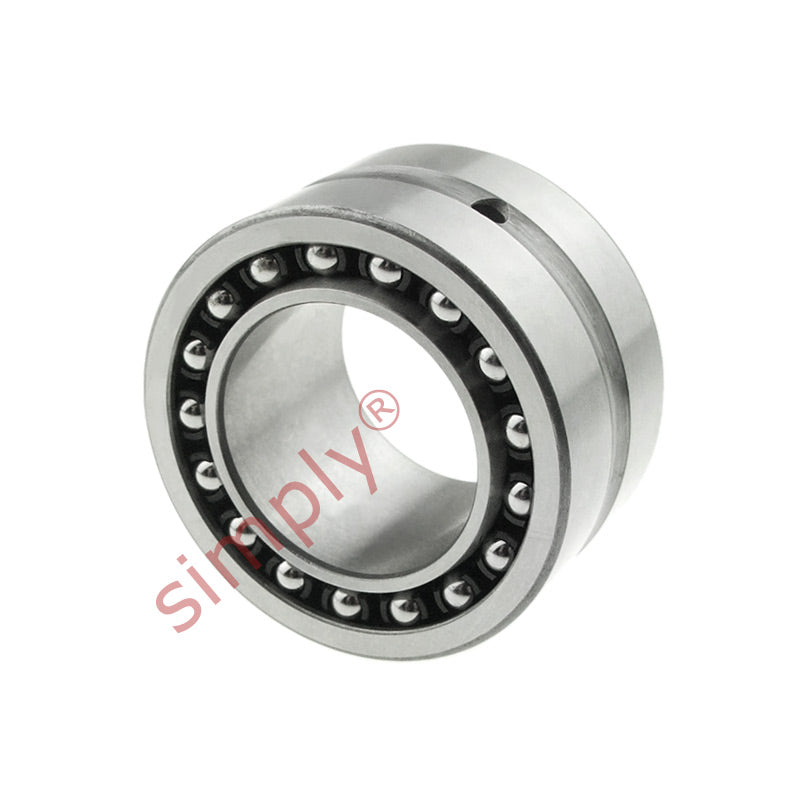

NKIA5902 Budget Needle Roller / Angular Contact Ball Bearing 15x28x18mm
NKIA5902 Budget Needle Roller / Angular Contact Ball Bearing 15x28x18mm
Regular price
Rs. 1,631.77
ex VAT
Regular price
Sale price
Rs. 1,631.77
ex VAT
In stock
Price Break
10+
Rs. 1,452.28
19+
Rs. 1,370.69
29+
Rs. 1,354.37
39+
Rs. 1,338.05
49+
Rs. 1,321.73
74+
Rs. 1,305.42
99+
Rs. 1,223.83
199+
Rs. 1,207.51
249+
Rs. 1,191.19
499+
Rs. 1,174.87
999+
Rs. 1,142.24
Couldn't load pickup availability
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 18mm
Technical
Technical
| d | 15mm |
|---|---|
| D | 28mm |
| B | 18mm |
| Radial dynamic load | 11400 N |
| Radial static load | 15600 N |
| Axial dynamic load | 2270 N |
| Axial static load | 2370 N |
| Fatigue load limit radial Pu | 1830 N |
| Fatigue load limit axial Pu | 99 N |
| Speed in grease | 13000 rpm |
| Speed in oil | 19000 rpm |
| F | 20mm |
| r1r2 | 0.3mm |
| da min | 17mm |
| Da max | 26mm |
| ra max | 0.3mm |
| Weight | 50 g |
