SKU: NKIA59/22-EU

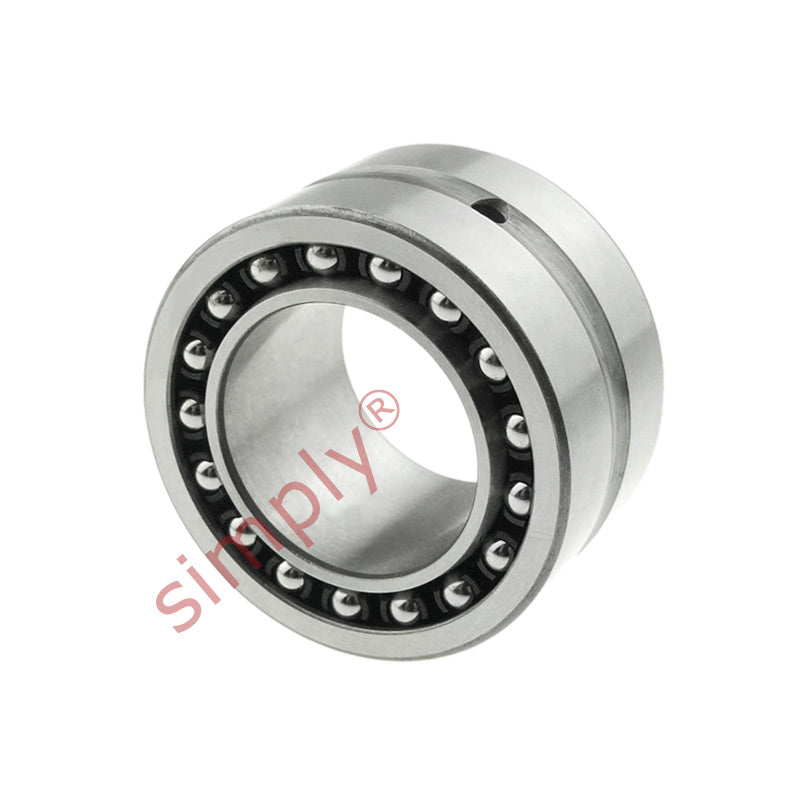

NKIA59/22 Budget Needle Roller / Angular Contact Ball Bearing 22x39x23mm
NKIA59/22 Budget Needle Roller / Angular Contact Ball Bearing 22x39x23mm
Regular price
Rs. 5,877.34
Regular price
Sale price
Rs. 5,877.34
Taxes included.
In stock
Price Break
10+
Rs. 5,230.83
19+
Rs. 4,936.97
29+
Rs. 4,878.19
39+
Rs. 4,819.42
49+
Rs. 4,760.65
74+
Rs. 4,701.87
99+
Rs. 4,408.01
199+
Rs. 4,349.23
249+
Rs. 4,290.46
499+
Rs. 4,231.68
999+
Rs. 4,114.14
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 39mm
- Width:
- 23mm
Technical
Technical
| d | 22mm |
|---|---|
| D | 39mm |
| B | 23mm |
| Radial dynamic load | 23300 N |
| Radial static load | 32000 N |
| Axial dynamic load | 4140 N |
| Axial static load | 4930 N |
| Fatigue load limit radial Pu | 3900 N |
| Fatigue load limit axial Pu | 205 N |
| Speed in grease | 9000 rpm |
| Speed in oil | 14000 rpm |
| F | 28mm |
| r1r2 | 0.3mm |
| da min | 24mm |
| Da max | 37mm |
| ra max | 0.3mm |
| Weight | 120 g |
