SKU: NKI95/36-EU
NKI95/36 Budget Needle Roller Bearing / Shaft Sleeve 95x125x36mm
NKI95/36 Budget Needle Roller Bearing / Shaft Sleeve 95x125x36mm
Regular price
Rs. 21,920.36
ex VAT
Regular price
Sale price
Rs. 21,920.36
ex VAT
In stock
Price Break
10+
Rs. 19,509.12
19+
Rs. 18,413.10
29+
Rs. 18,193.90
39+
Rs. 17,974.70
49+
Rs. 17,755.49
74+
Rs. 17,536.29
99+
Rs. 16,440.27
199+
Rs. 16,221.07
249+
Rs. 16,001.86
499+
Rs. 15,782.66
999+
Rs. 15,344.25
Couldn't load pickup availability
Description
Description
|

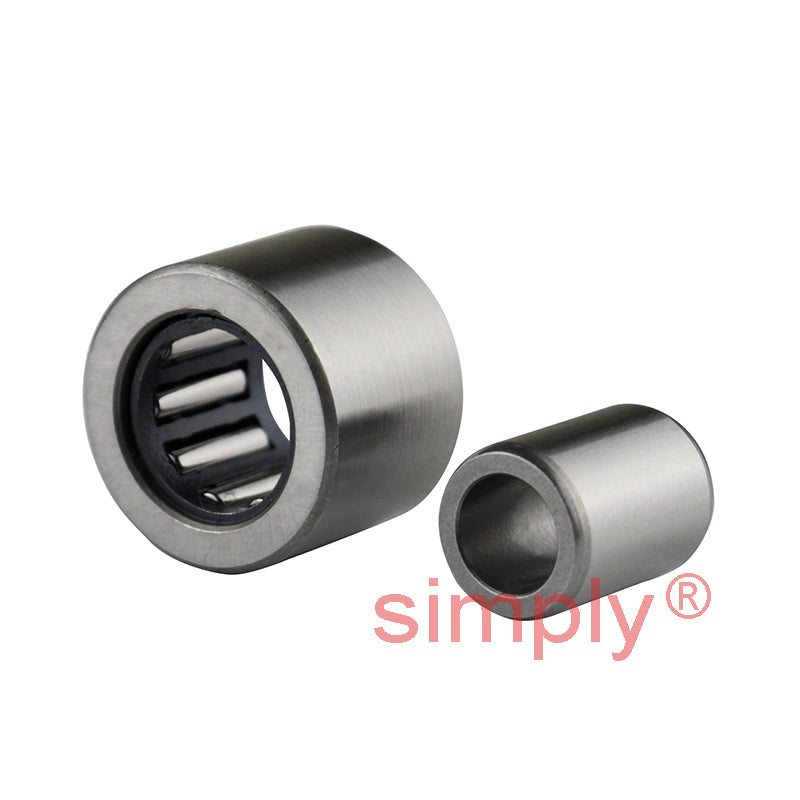

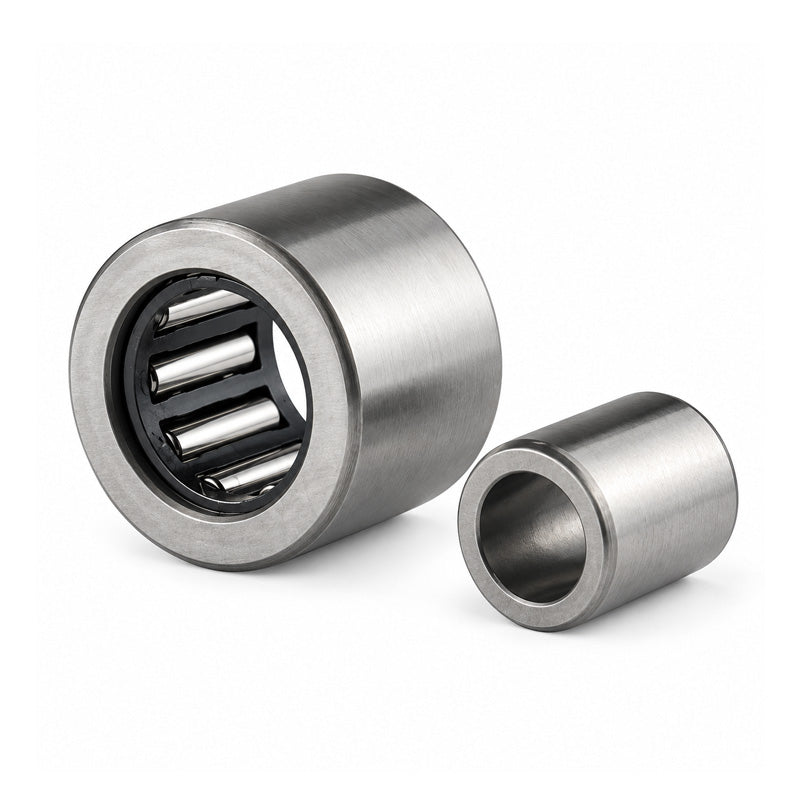

Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 125mm
- Width:
- 36mm
Technical
Technical
| d | 95mm |
|---|---|
| D | 125mm |
| B | 36mm |
| Dynamic load C | 112000 N |
| Static load Co | 265000 N |
| Fatigue load limit Pu | 33500 N |
| Speed in grease | 2600 rpm |
| Speed in oil | 3800 rpm |
| F | 105mm |
| r1r2 | 1mm |
| S (axial disp) | 1.5mm |
| da min | 100mm |
| Da max | 120mm |
| ra max | 1mm |
