SKU: NKI9/16-EU

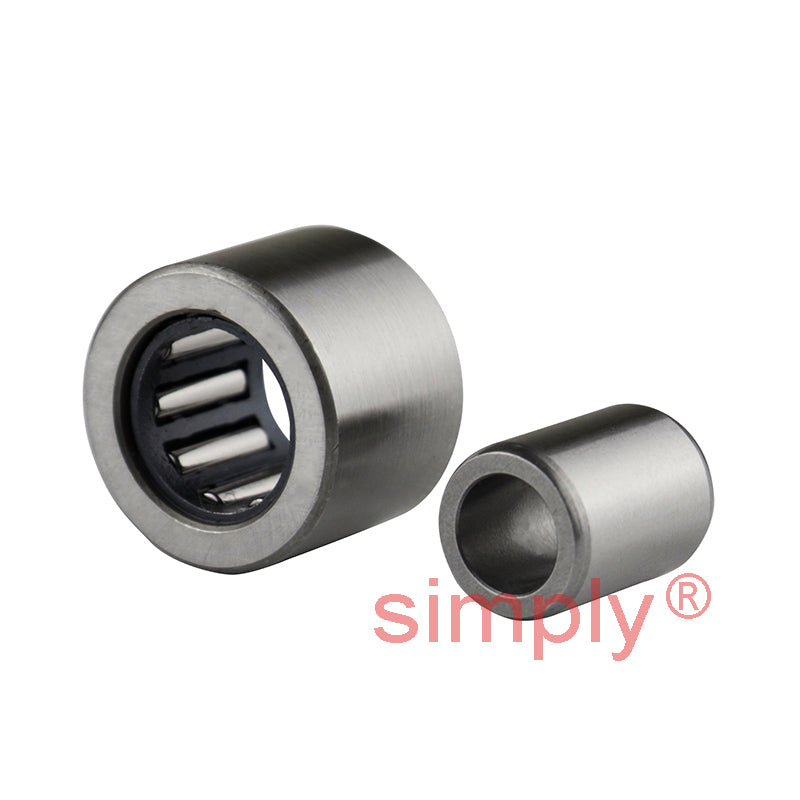

NKI9/16 Budget Needle Roller Bearing / Shaft Sleeve 9x19x16mm
NKI9/16 Budget Needle Roller Bearing / Shaft Sleeve 9x19x16mm
Regular price
Rs. 1,316.03
Regular price
Sale price
Rs. 1,316.03
Taxes included.
In stock
Price Break
10+
Rs. 1,171.27
19+
Rs. 1,105.47
29+
Rs. 1,092.30
39+
Rs. 1,079.14
49+
Rs. 1,065.98
74+
Rs. 1,052.82
99+
Rs. 987.02
199+
Rs. 973.86
249+
Rs. 960.70
499+
Rs. 947.54
999+
Rs. 921.22
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 9mm
- Outside Diameter:
- 19mm
- Width:
- 16mm
Technical
Technical
| d | 9mm |
|---|---|
| D | 19mm |
| B | 16mm |
| Dynamic load C | 9130 N |
| Static load Co | 12000 N |
| Fatigue load limit Pu | 1460 N |
| Speed in grease | 19000 rpm |
| Speed in oil | 30000 rpm |
| F | 12mm |
| r1r2 | 0.3mm |
| S (axial disp) | 2mm |
| da min | 11mm |
| Da max | 17mm |
| ra max | 0.3mm |
