SKU: NKI65/35-MB
Major Brand NKI65/35 Needle Roller Bearing With Shaft Sleeve 65x90x35mm
Major Brand NKI65/35 Needle Roller Bearing With Shaft Sleeve 65x90x35mm
Regular price
Rs. 10,519.30
Regular price
Sale price
Rs. 10,519.30
Taxes included.
In stock
Price Break
10+
Rs. 9,362.18
19+
Rs. 8,836.21
29+
Rs. 8,731.02
39+
Rs. 8,625.83
49+
Rs. 8,520.63
74+
Rs. 8,415.44
99+
Rs. 7,889.48
199+
Rs. 7,784.28
249+
Rs. 7,679.09
499+
Rs. 7,573.90
999+
Rs. 7,363.51
Description
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 90mm
- Width:
- 35mm

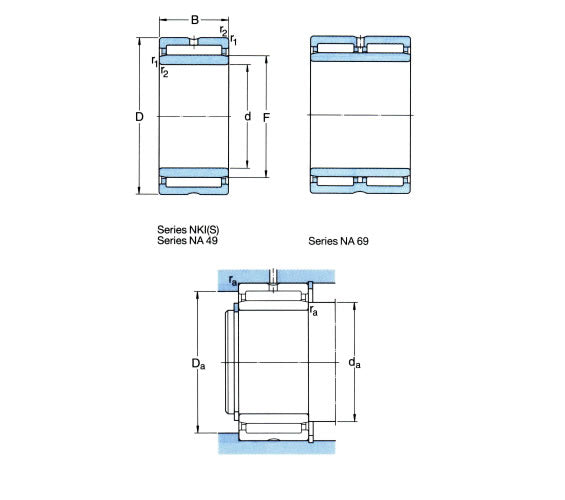

Technical
Technical
| d | 65mm |
|---|---|
| D | 90mm |
| B | 35mm |
| Dynamic load | 73700 N |
| Static load | 163000 N |
| Fatigue load limit Pu | 21600 N |
| Speed in grease | 4000 rpm |
| Speed in oil | 5600 rpm |
| F | 73mm |
| r1r2 | 1mm |
| S (axial disp) | 1mm |
| da min | 70mm |
| Da max | 85mm |
| ra max | 1mm |
