SKU: NKI60/35-MB

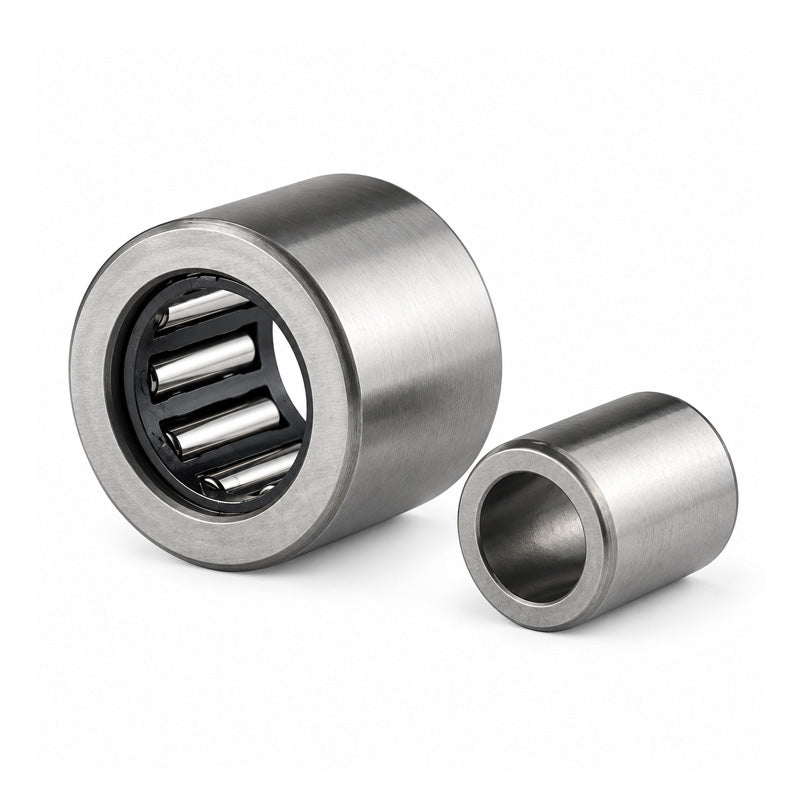

Major Brand NKI60/35 Needle Roller Bearing With Shaft Sleeve 60x82x35mm
Major Brand NKI60/35 Needle Roller Bearing With Shaft Sleeve 60x82x35mm
Regular price
Rs. 9,571.35
ex VAT
Regular price
Sale price
Rs. 9,571.35
ex VAT
In stock
Price Break
10+
Rs. 8,518.50
19+
Rs. 8,039.93
29+
Rs. 7,944.22
39+
Rs. 7,848.51
49+
Rs. 7,752.79
74+
Rs. 7,657.08
99+
Rs. 7,178.51
199+
Rs. 7,082.80
249+
Rs. 6,987.09
499+
Rs. 6,891.37
999+
Rs. 6,699.95
Couldn't load pickup availability
Description
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 82mm
- Width:
- 35mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 82mm |
| B | 35mm |
| Dynamic load | 60500 N |
| Static load | 146000 N |
| Fatigue load limit Pu | 19000 N |
| Speed in grease | 4300 rpm |
| Speed in oil | 6000 rpm |
| F | 68mm |
| r1r2 | 0.6mm |
| S (axial disp) | 1mm |
| da min | 64mm |
| Da max | 78mm |
| ra max | 0.6mm |
