SKU: NKI60/35-EU

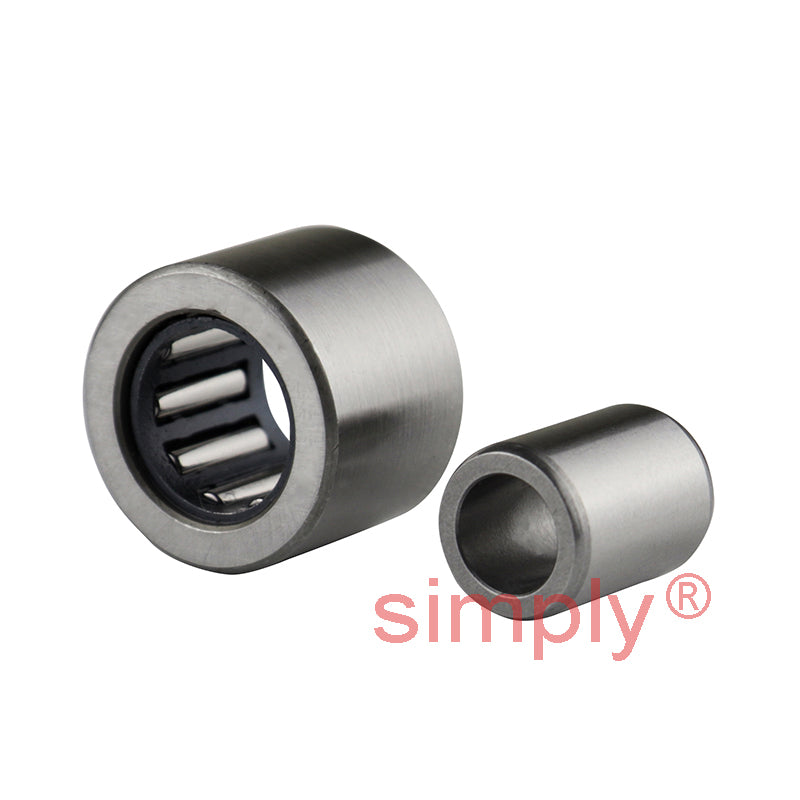

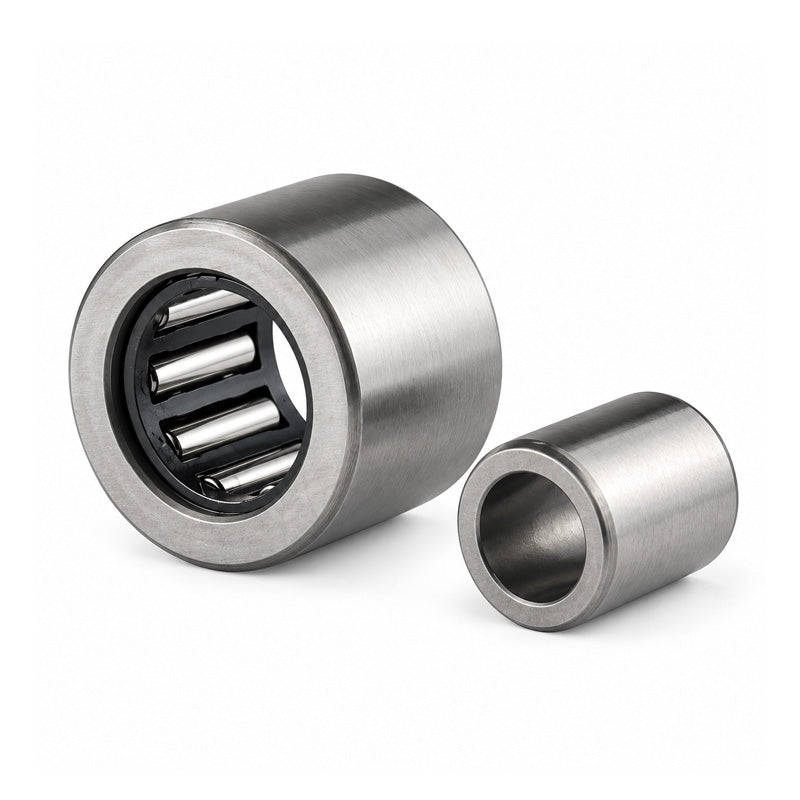

NKI60/35 Budget Needle Roller Bearing / Shaft Sleeve 60x82x35mm
NKI60/35 Budget Needle Roller Bearing / Shaft Sleeve 60x82x35mm
Regular price
Rs. 7,740.01
Regular price
Sale price
Rs. 7,740.01
Taxes included.
In stock
Price Break
10+
Rs. 6,888.61
19+
Rs. 6,501.61
29+
Rs. 6,424.21
39+
Rs. 6,346.81
49+
Rs. 6,269.41
74+
Rs. 6,192.01
99+
Rs. 5,805.01
199+
Rs. 5,727.61
249+
Rs. 5,650.21
499+
Rs. 5,572.81
999+
Rs. 5,418.01
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 82mm
- Width:
- 35mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 82mm |
| B | 35mm |
| Dynamic load C | 60500 N |
| Static load Co | 146000 N |
| Fatigue load limit Pu | 19000 N |
| Speed in grease | 4300 rpm |
| Speed in oil | 6000 rpm |
| F | 68mm |
| r1r2 | 0.6mm |
| S (axial disp) | 1mm |
| da min | 64mm |
| Da max | 78mm |
| ra max | 0.6mm |
