SKU: NKI6/16TN-EU

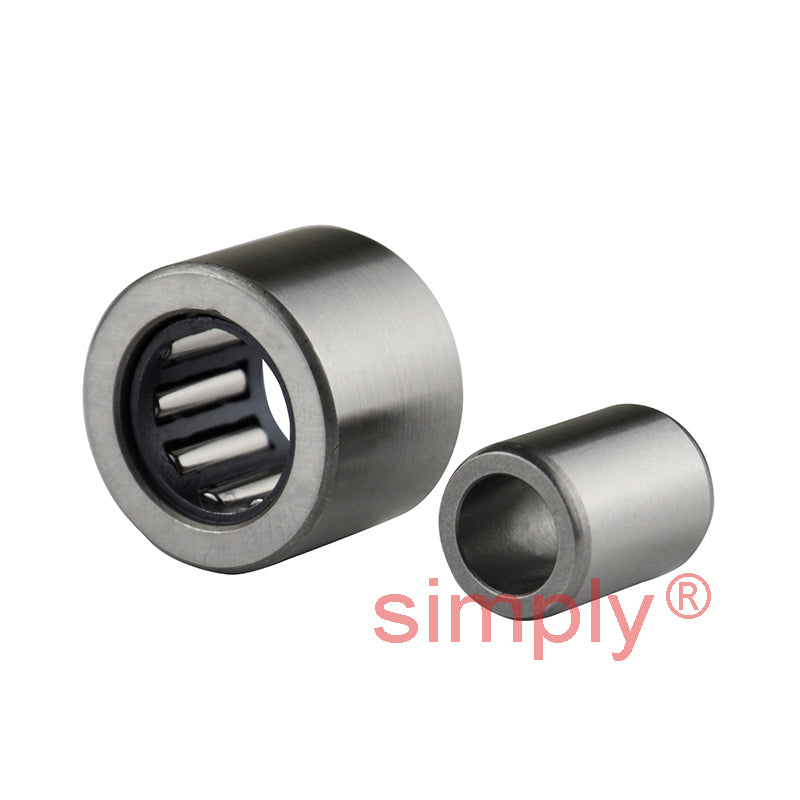

NKI6/16TN Budget Needle Roller Bearing / Shaft Sleeve 6x16x16mm
NKI6/16TN Budget Needle Roller Bearing / Shaft Sleeve 6x16x16mm
Regular price
Rs. 1,288.79
ex VAT
Regular price
Sale price
Rs. 1,288.79
ex VAT
In stock
Price Break
10+
Rs. 1,147.02
19+
Rs. 1,082.58
29+
Rs. 1,069.70
39+
Rs. 1,056.81
49+
Rs. 1,043.92
74+
Rs. 1,031.03
99+
Rs. 966.59
199+
Rs. 953.70
249+
Rs. 940.82
499+
Rs. 927.93
999+
Rs. 902.15
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 16mm
- Width:
- 16mm
Technical
Technical
| d | 6mm |
|---|---|
| D | 16mm |
| B | 16mm |
| Dynamic load C | 5720 N |
| Static load Co | 7200 N |
| Fatigue load limit Pu | 815 N |
| Speed in grease | 24000 rpm |
| Speed in oil | 36000 rpm |
| F | 9mm |
| r1r2 | 0.3mm |
| S (axial disp) | 2mm |
| da min | 8mm |
| Da max | 14mm |
| ra max | 0.3mm |
