SKU: NKI45/35TN-EU
NKI45/35TN Budget Needle Roller Bearing / Shaft Sleeve 45x62x35mm
NKI45/35TN Budget Needle Roller Bearing / Shaft Sleeve 45x62x35mm
Regular price
Rs. 4,810.95
Regular price
Sale price
Rs. 4,810.95
Taxes included.
In stock
Price Break
10+
Rs. 4,281.75
19+
Rs. 4,041.20
29+
Rs. 3,993.09
39+
Rs. 3,944.98
49+
Rs. 3,896.87
74+
Rs. 3,848.76
99+
Rs. 3,608.21
199+
Rs. 3,560.10
249+
Rs. 3,511.99
499+
Rs. 3,463.88
999+
Rs. 3,367.67
Description
Description
|

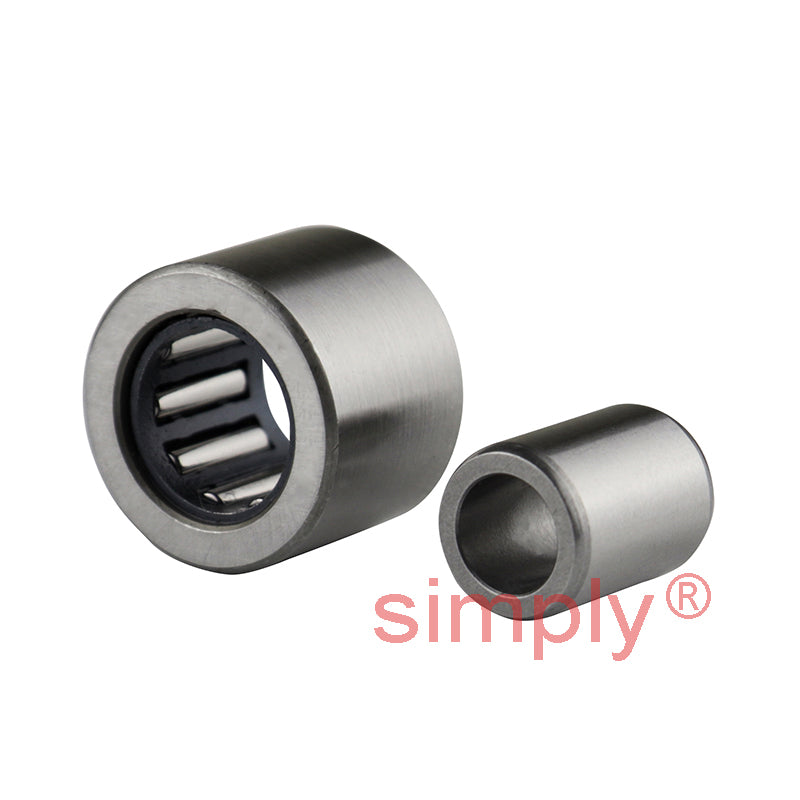

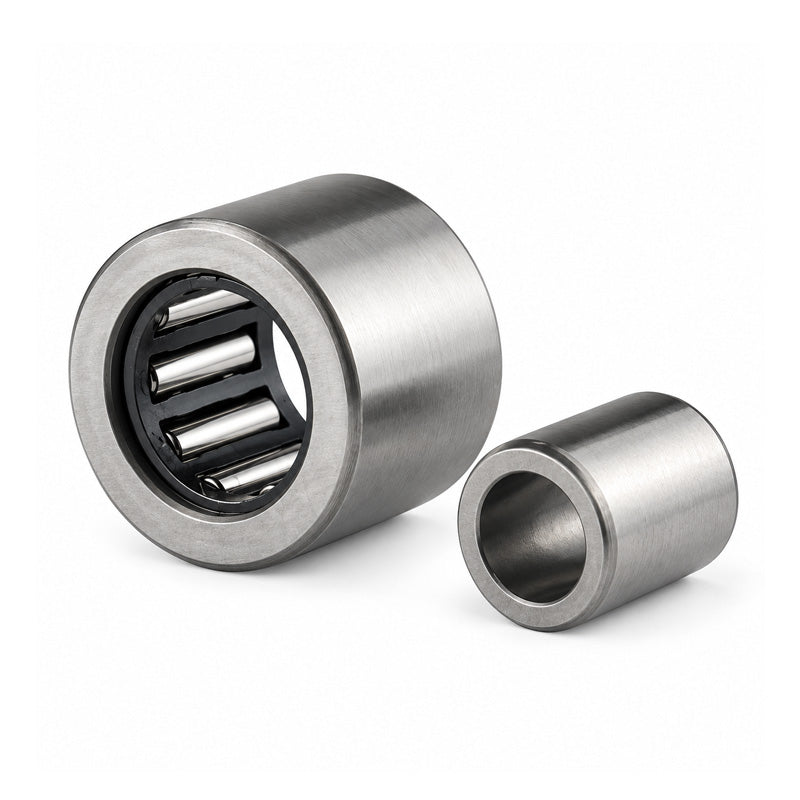

Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 62mm
- Width:
- 35mm
Technical
Technical
| d | 45mm |
|---|---|
| D | 62mm |
| B | 35mm |
| Dynamic load C | 49500 N |
| Static load Co | 110000 N |
| Fatigue load limit Pu | 14300 N |
| Speed in grease | 5600 rpm |
| Speed in oil | 8000 rpm |
| F | 50mm |
| r1r2 | 0.6mm |
| S (axial disp) | 2mm |
| da min | 49mm |
| Da max | 58mm |
| ra max | 0.6mm |
