SKU: NKI42/20-EU

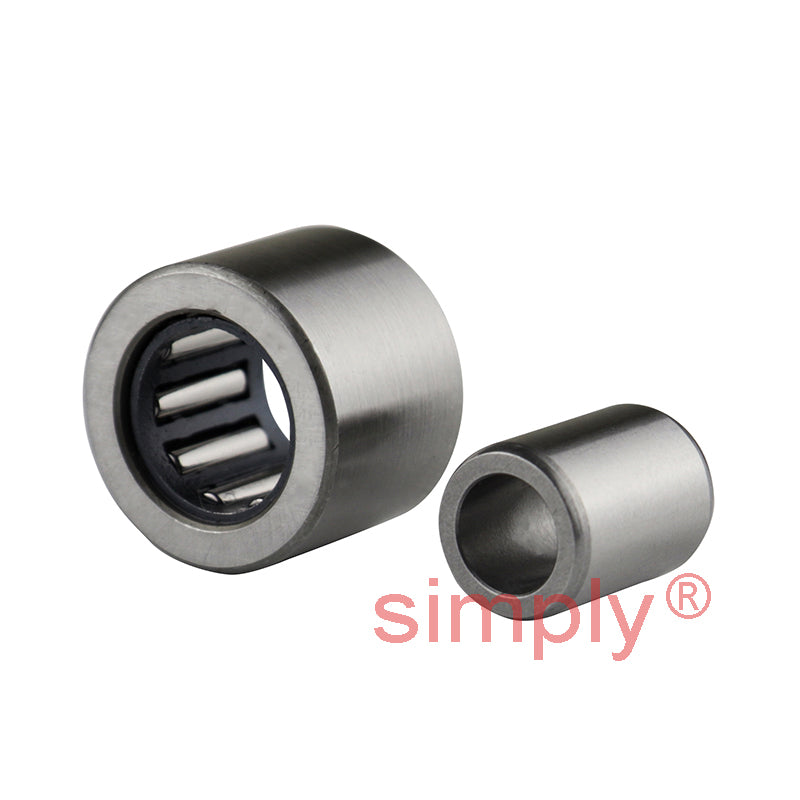

NKI42/20 Budget Needle Roller Bearing / Shaft Sleeve 42x57x20mm
NKI42/20 Budget Needle Roller Bearing / Shaft Sleeve 42x57x20mm
Regular price
Rs. 1,230.26
Regular price
Sale price
Rs. 1,230.26
Taxes included.
In stock
Price Break
10+
Rs. 1,094.93
19+
Rs. 1,033.42
29+
Rs. 1,021.12
39+
Rs. 1,008.81
49+
Rs. 996.51
74+
Rs. 984.21
99+
Rs. 922.70
199+
Rs. 910.39
249+
Rs. 898.09
499+
Rs. 885.79
999+
Rs. 861.18
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 42mm
- Outside Diameter:
- 57mm
- Width:
- 20mm
Technical
Technical
| d | 42mm |
|---|---|
| D | 57mm |
| B | 20mm |
| Dynamic load C | 29200 N |
| Static load Co | 61000 N |
| Fatigue load limit Pu | 7650 N |
| Speed in grease | 6000 rpm |
| Speed in oil | 8500 rpm |
| F | 47mm |
| r1r2 | 0.3mm |
| S (axial disp) | 0.5mm |
| da min | 44mm |
| Da max | 55mm |
| ra max | 0.3mm |
