SKU: NKI38/30-MB

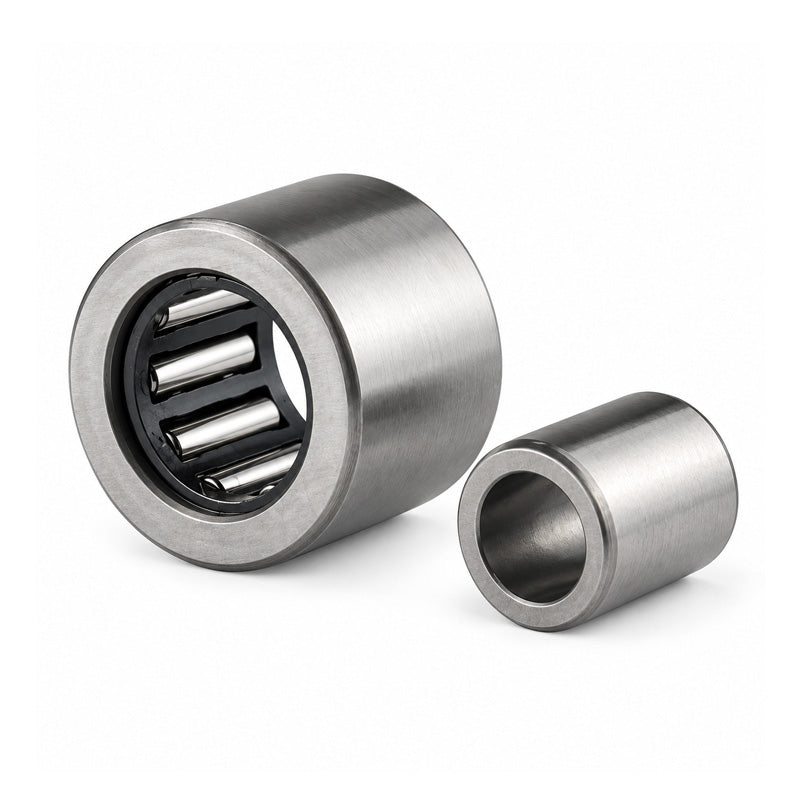

Major Brand NKI38/30 Needle Roller Bearing With Shaft Sleeve 38x53x30mm
Major Brand NKI38/30 Needle Roller Bearing With Shaft Sleeve 38x53x30mm
Regular price
Rs. 6,915.74
ex VAT
Regular price
Sale price
Rs. 6,915.74
ex VAT
In stock
Price Break
10+
Rs. 6,155.01
19+
Rs. 5,809.22
29+
Rs. 5,740.06
39+
Rs. 5,670.91
49+
Rs. 5,601.75
74+
Rs. 5,532.59
99+
Rs. 5,186.81
199+
Rs. 5,117.65
249+
Rs. 5,048.49
499+
Rs. 4,979.33
999+
Rs. 4,841.02
Couldn't load pickup availability
Description
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 38mm
- Outside Diameter:
- 53mm
- Width:
- 30mm
Technical
Technical
| d | 38mm |
|---|---|
| D | 53mm |
| B | 30mm |
| Dynamic load | 40200 N |
| Static load | 90000 N |
| Fatigue load limit Pu | 11600 N |
| Speed in grease | 6700 rpm |
| Speed in oil | 9500 rpm |
| F | 43mm |
| r1r2 | 0.3mm |
| S (axial disp) | 1mm |
| da min | 40mm |
| Da max | 51mm |
| ra max | 0.3mm |
