SKU: NKI38/30-EU

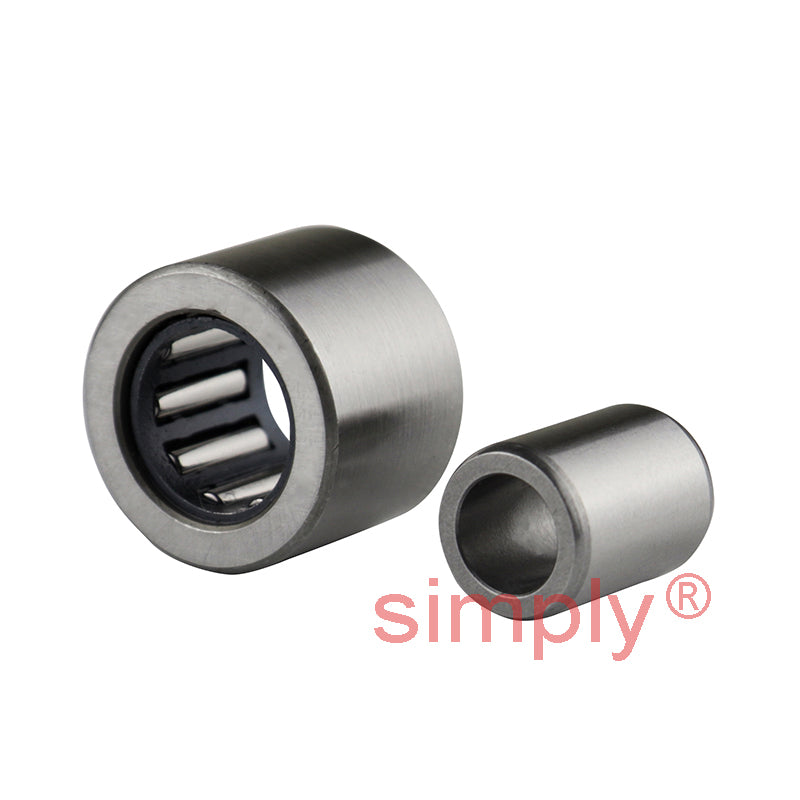

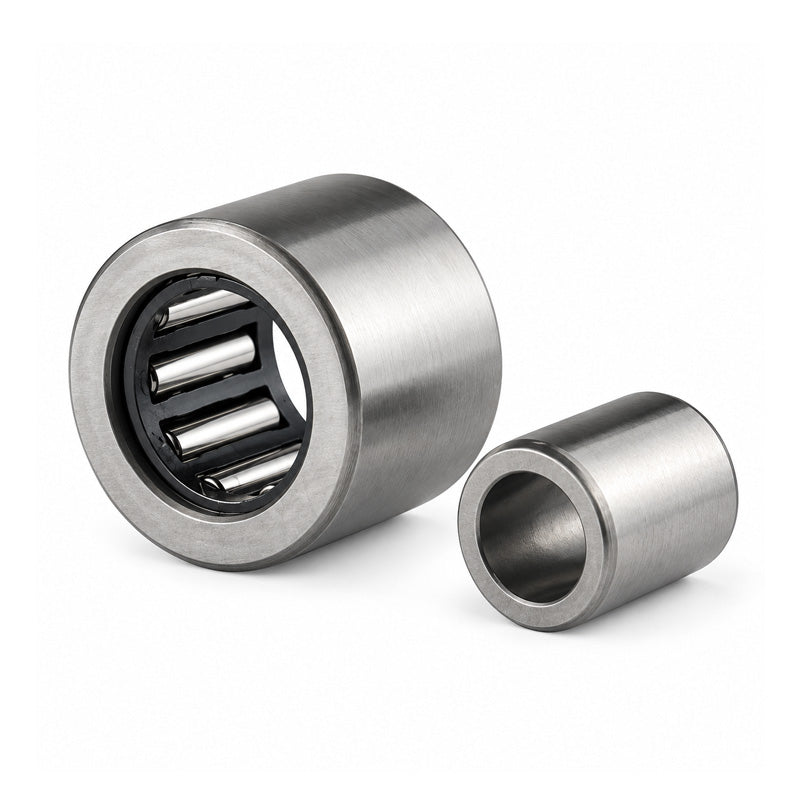

NKI38/30 Budget Needle Roller Bearing / Shaft Sleeve 38x53x30mm
NKI38/30 Budget Needle Roller Bearing / Shaft Sleeve 38x53x30mm
Regular price
Rs. 3,995.47
Regular price
Sale price
Rs. 3,995.47
Taxes included.
In stock
Price Break
10+
Rs. 3,555.97
19+
Rs. 3,356.19
29+
Rs. 3,316.24
39+
Rs. 3,276.29
49+
Rs. 3,236.33
74+
Rs. 3,196.38
99+
Rs. 2,996.60
199+
Rs. 2,956.65
249+
Rs. 2,916.69
499+
Rs. 2,876.74
999+
Rs. 2,796.83
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38mm
- Outside Diameter:
- 53mm
- Width:
- 30mm
Technical
Technical
| d | 38mm |
|---|---|
| D | 53mm |
| B | 30mm |
| Dynamic load C | 40200 N |
| Static load Co | 90000 N |
| Fatigue load limit Pu | 11600 N |
| Speed in grease | 6700 rpm |
| Speed in oil | 9500 rpm |
| F | 43mm |
| r1r2 | 0.3mm |
| S (axial disp) | 1mm |
| da min | 40mm |
| Da max | 51mm |
| ra max | 0.3mm |
