SKU: NKI38/20-EU

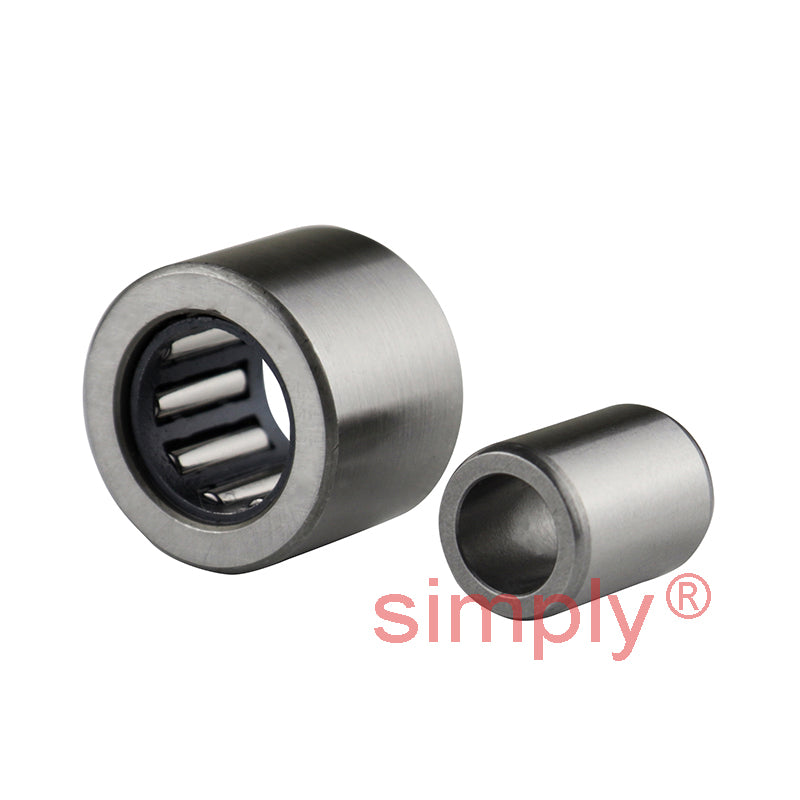

NKI38/20 Budget Needle Roller Bearing / Shaft Sleeve 38x53x20mm
NKI38/20 Budget Needle Roller Bearing / Shaft Sleeve 38x53x20mm
Regular price
Rs. 1,013.91
Regular price
Sale price
Rs. 1,013.91
Taxes included.
In stock
Price Break
10+
Rs. 902.38
19+
Rs. 851.68
29+
Rs. 841.55
39+
Rs. 831.41
49+
Rs. 821.27
74+
Rs. 811.13
99+
Rs. 760.43
199+
Rs. 750.29
249+
Rs. 740.15
499+
Rs. 730.02
999+
Rs. 709.74
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38mm
- Outside Diameter:
- 53mm
- Width:
- 20mm
Technical
Technical
| d | 38mm |
|---|---|
| D | 53mm |
| B | 20mm |
| Dynamic load C | 27500 N |
| Static load Co | 55000 N |
| Fatigue load limit Pu | 6950 N |
| Speed in grease | 6700 rpm |
| Speed in oil | 9500 rpm |
| F | 43mm |
| r1r2 | 0.3mm |
| S (axial disp) | 0.5mm |
| da min | 40mm |
| Da max | 51mm |
| ra max | 0.3mm |
