SKU: NKI35/30-EU

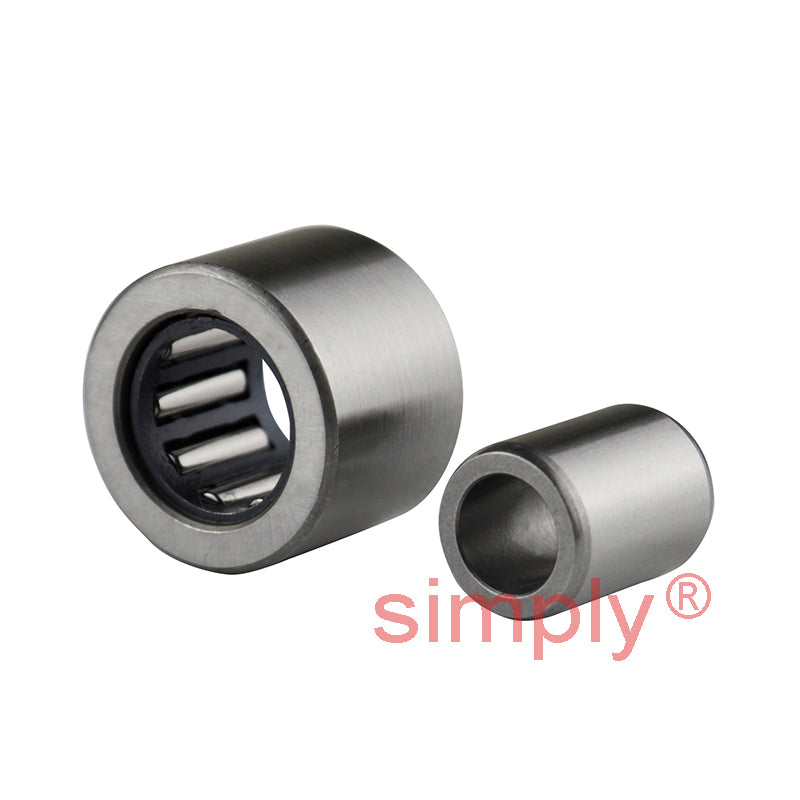

NKI35/30 Budget Needle Roller Bearing / Shaft Sleeve 35x50x30mm
NKI35/30 Budget Needle Roller Bearing / Shaft Sleeve 35x50x30mm
Regular price
Rs. 1,112.48
Regular price
Sale price
Rs. 1,112.48
Taxes included.
In stock
Price Break
10+
Rs. 990.11
19+
Rs. 934.48
29+
Rs. 923.36
39+
Rs. 912.23
49+
Rs. 901.11
74+
Rs. 889.98
99+
Rs. 834.36
199+
Rs. 823.24
249+
Rs. 812.11
499+
Rs. 800.99
999+
Rs. 778.74
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 50mm
- Width:
- 30mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 50mm |
| B | 30mm |
| Dynamic load C | 38000 N |
| Static load Co | 83000 N |
| Fatigue load limit Pu | 10800 N |
| Speed in grease | 7000 rpm |
| Speed in oil | 10000 rpm |
| F | 40mm |
| r1r2 | 0.3mm |
| S (axial disp) | 1mm |
| da min | 37mm |
| Da max | 48mm |
| ra max | 0.3mm |
