SKU: NKI35/20-EU

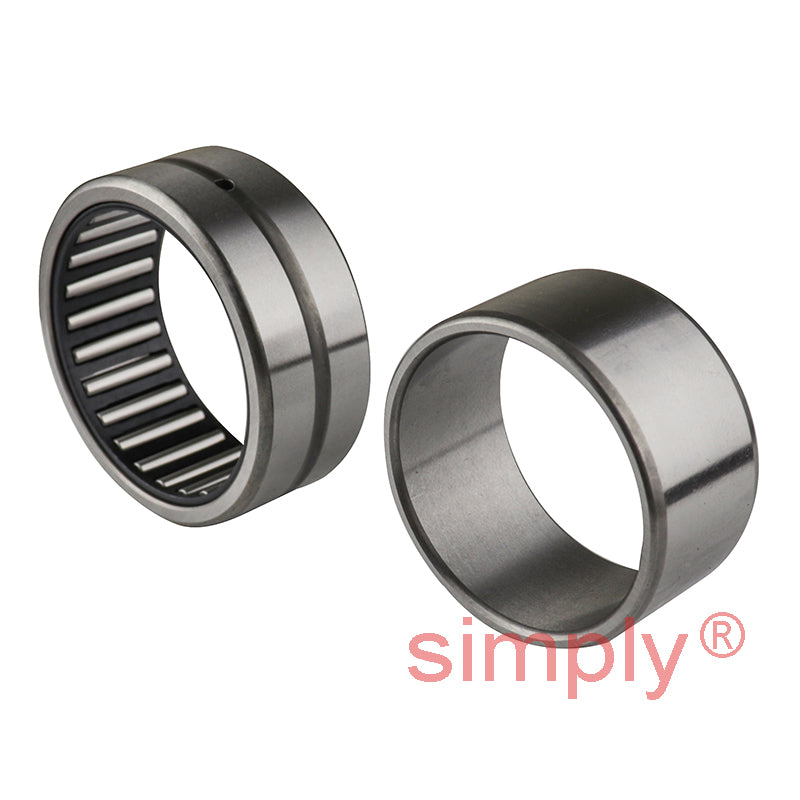

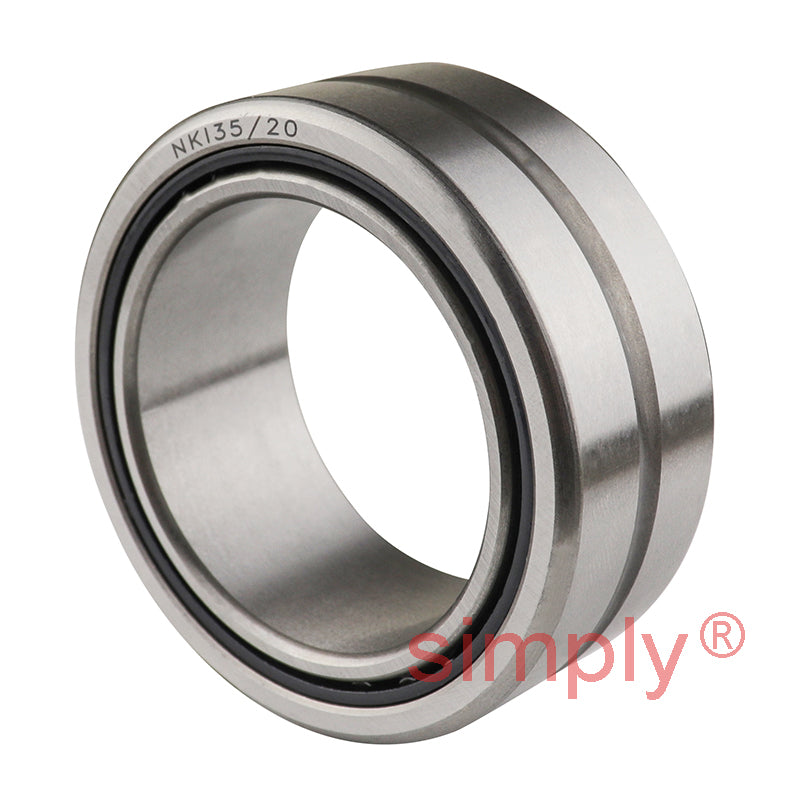

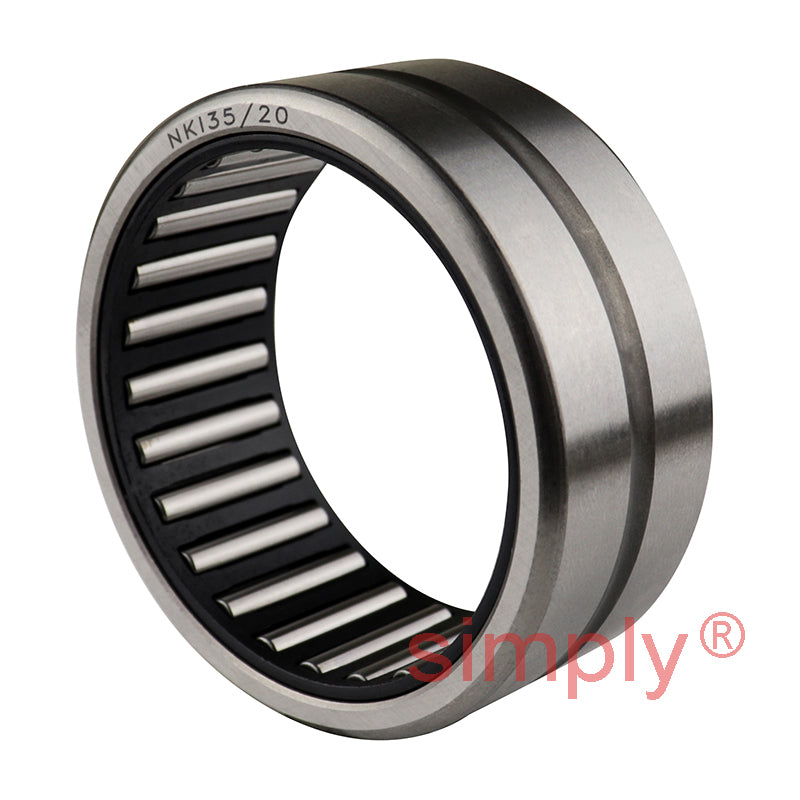

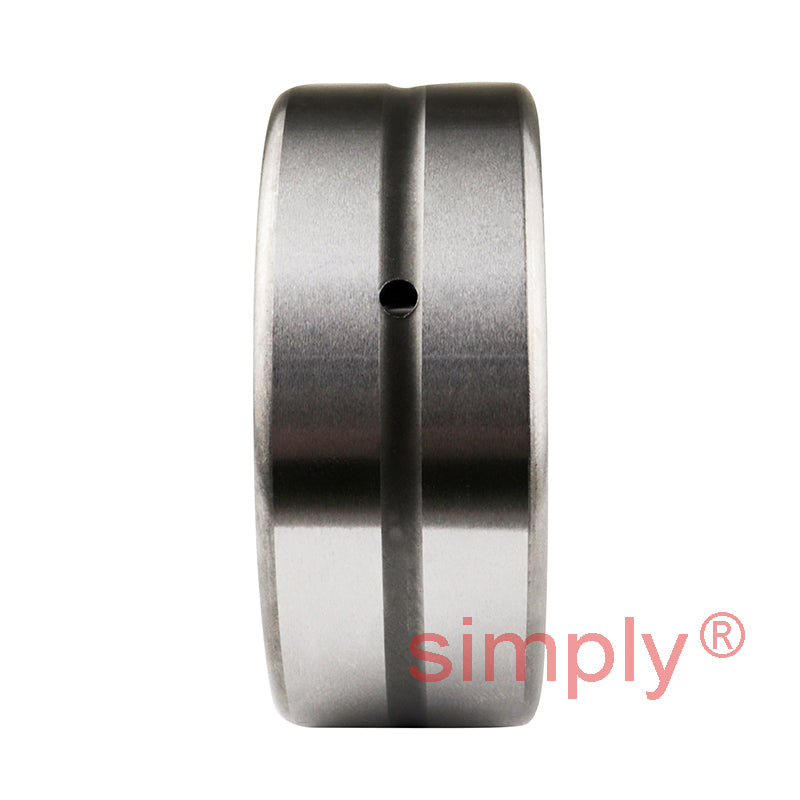

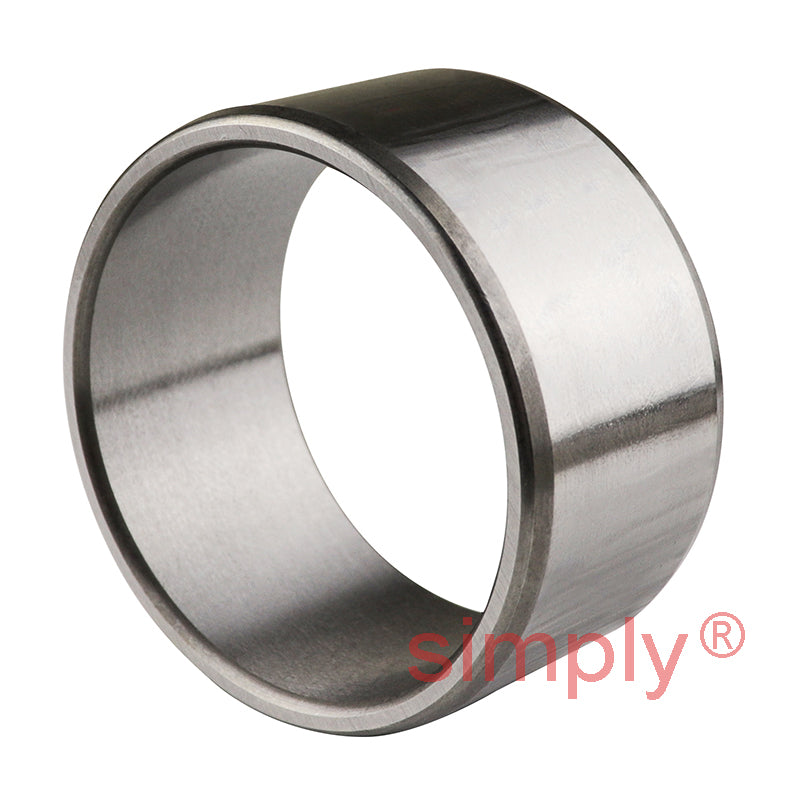

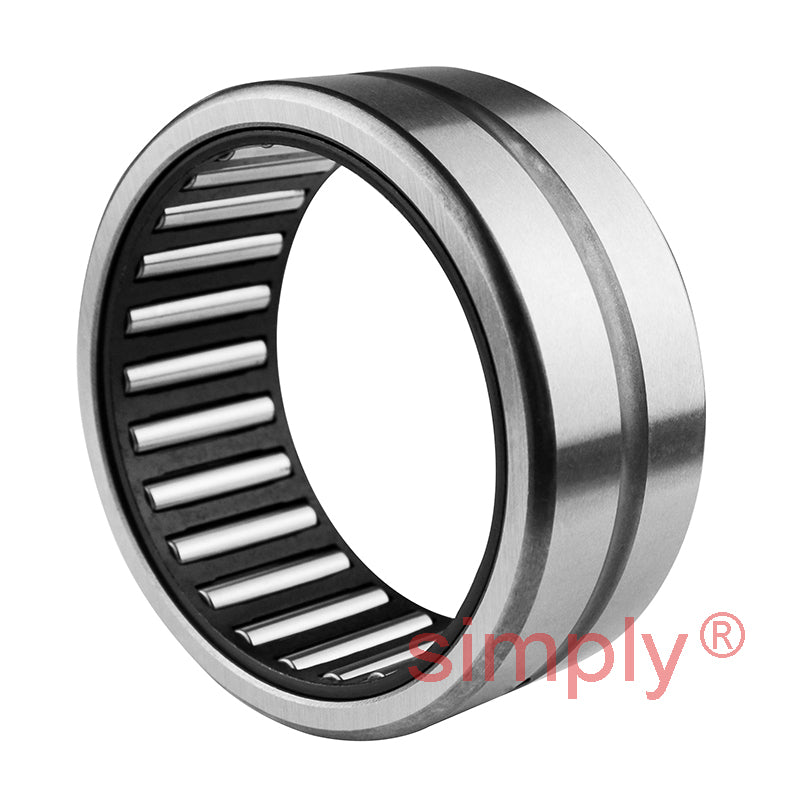

NKI35/20 Budget Needle Roller Bearing / Shaft Sleeve 35x50x20mm
NKI35/20 Budget Needle Roller Bearing / Shaft Sleeve 35x50x20mm
Regular price
Rs. 1,137.62
ex VAT
Regular price
Sale price
Rs. 1,137.62
ex VAT
In stock
Price Break
10+
Rs. 1,012.48
19+
Rs. 955.60
29+
Rs. 944.22
39+
Rs. 932.85
49+
Rs. 921.47
74+
Rs. 910.10
99+
Rs. 853.22
199+
Rs. 841.84
249+
Rs. 830.46
499+
Rs. 819.09
999+
Rs. 796.33
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 50mm
- Width:
- 20mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 50mm |
| B | 20mm |
| Dynamic load C | 26400 N |
| Static load Co | 51000 N |
| Fatigue load limit Pu | 6400 N |
| Speed in grease | 7000 rpm |
| Speed in oil | 10000 rpm |
| F | 40mm |
| r1r2 | 0.3mm |
| S (axial disp) | 0.5mm |
| da min | 37mm |
| Da max | 48mm |
| ra max | 0.3mm |
