SKU: NKI20/16-EU

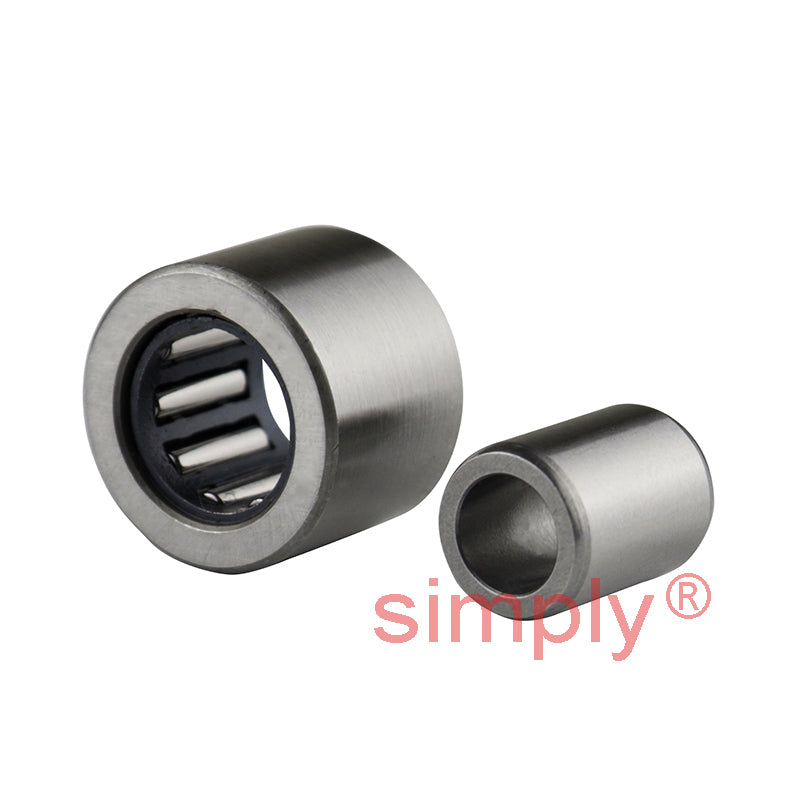

NKI20/16 Budget Needle Roller Bearing / Shaft Sleeve 20x32x16mm
NKI20/16 Budget Needle Roller Bearing / Shaft Sleeve 20x32x16mm
Regular price
Rs. 1,884.44
Regular price
Sale price
Rs. 1,884.44
Taxes included.
In stock
Price Break
10+
Rs. 1,677.15
19+
Rs. 1,582.93
29+
Rs. 1,564.09
39+
Rs. 1,545.24
49+
Rs. 1,526.40
74+
Rs. 1,507.55
99+
Rs. 1,413.33
199+
Rs. 1,394.49
249+
Rs. 1,375.64
499+
Rs. 1,356.80
999+
Rs. 1,319.11
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 32mm
- Width:
- 16mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 32mm |
| B | 16mm |
| Dynamic load C | 15400 N |
| Static load Co | 24500 N |
| Fatigue load limit Pu | 3000 N |
| Speed in grease | 10000 rpm |
| Speed in oil | 16000 rpm |
| F | 24mm |
| r1r2 | 0.3mm |
| S (axial disp) | 0.5mm |
| da min | 22mm |
| Da max | 30mm |
| ra max | 0.3mm |
