SKU: NKI12/20-EU

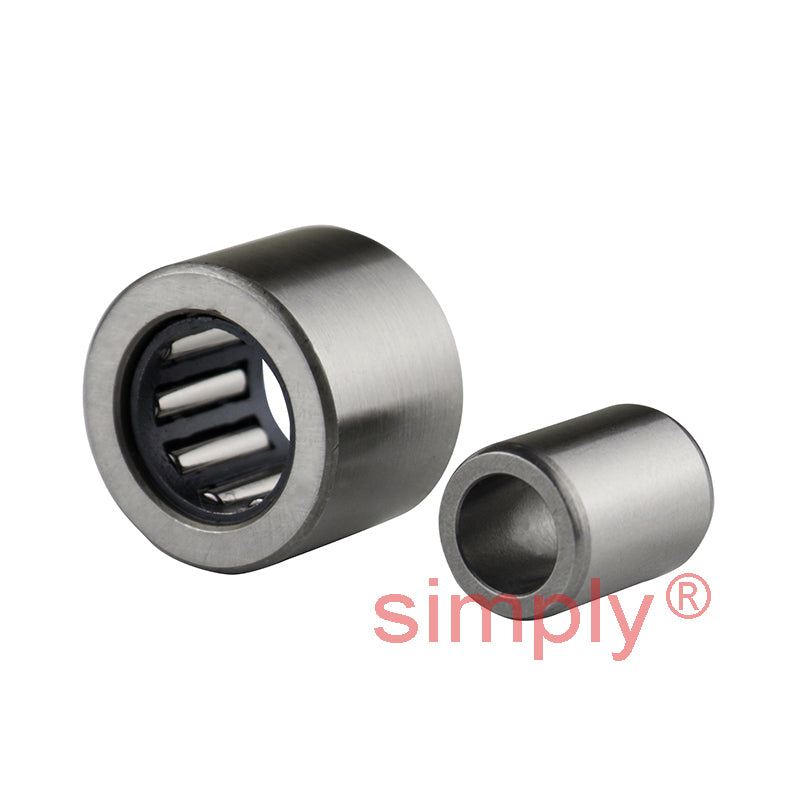

NKI12/20 Budget Needle Roller Bearing / Shaft Sleeve 12x24x20mm
NKI12/20 Budget Needle Roller Bearing / Shaft Sleeve 12x24x20mm
Regular price
Rs. 1,769.22
Regular price
Sale price
Rs. 1,769.22
Taxes included.
In stock
Price Break
10+
Rs. 1,574.61
19+
Rs. 1,486.14
29+
Rs. 1,468.45
39+
Rs. 1,450.76
49+
Rs. 1,433.07
74+
Rs. 1,415.38
99+
Rs. 1,326.92
199+
Rs. 1,309.22
249+
Rs. 1,291.53
499+
Rs. 1,273.84
999+
Rs. 1,238.45
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 24mm
- Width:
- 20mm
Technical
Technical
| d | 12mm |
|---|---|
| D | 24mm |
| B | 20mm |
| Dynamic load C | 14500 N |
| Static load Co | 20000 N |
| Fatigue load limit Pu | 2500 N |
| Speed in grease | 16000 rpm |
| Speed in oil | 24000 rpm |
| F | 16mm |
| r1r2 | 0.3mm |
| S (axial disp) | 0.5mm |
| da min | 14mm |
| Da max | 22mm |
| ra max | 0.3mm |
